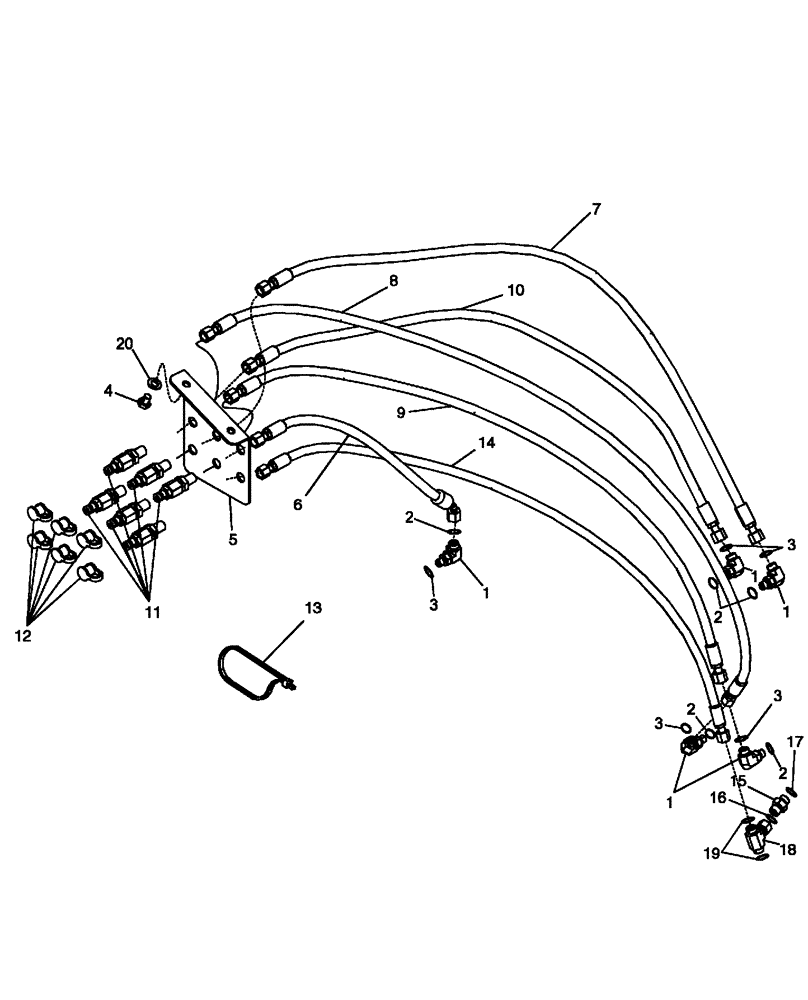

Запчасти Case 650L (29.212.07) - DIAGNOSTIC LINES (29) - HYDROSTATIC DRIVE

1

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Inc. 2,3

5шт.

2

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss End

1шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

5

87604302

MOUNTING PLATE

Diagnostics

1шт.

6

87668177

HOSE

430 mm (16-15/16 in); To Gage Port On The Control/Equipment Valve

1шт.

7

87668178

HOSE

1000 mm (39-3/8 in); Right Reverse; To Top Port MB On The Front Pump, Left Side

1шт.

8

87668179

HOSE

1230 mm (48-716 in); Left Forward; To Bottom Port MB On The Rear Pump, Right Side

1шт.

9

87668180

HOSE

1100 mm (43-5/16 in); Left Reverse; To Top Port MA On The Rear Pump, Right Side

1шт.

10

87668181

HOSE

1110 mm (43-3/4 in); Right Forward; To Bottom Port MA On The Front Pump, Left Side

1шт.

11

442012A1

LUBE NIPPLE

Diagnostic Check

6шт.

12

H434163

DUST CAP

6шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

14

84147093

HOSE

1085 mm (42-3/4 in); Charge Pressure; To Port G1 On The Rear Pump, Right Side

1шт.

15

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Inc. 16, 17

1шт.

16

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

2шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

18

201-426

TEE,9/16"-18 ORFS x 9/16"-18 Sw Br

Inc. 19

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

20

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
