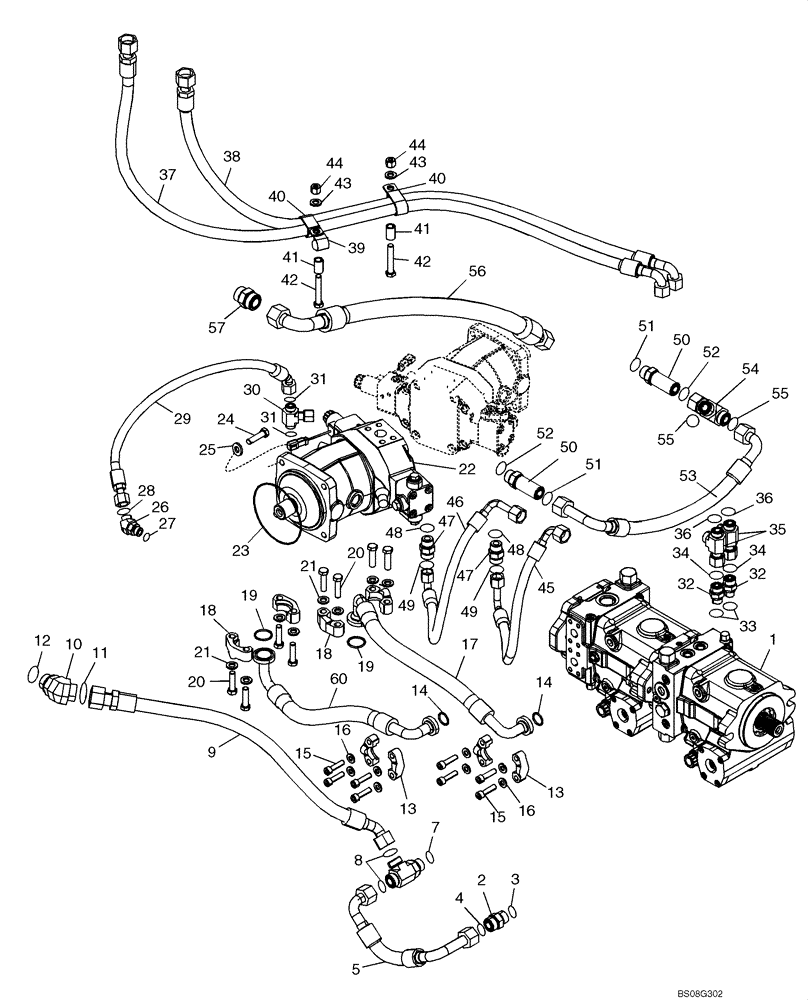

Запчасти Case 650L (29.212.05) - HYDROSTATICS - PUMP/MOTOR - RIGHT SIDE (29) - HYDROSTATIC DRIVE
№
Артикул
Название
Примечание
Количество
1
87627042
HYDRAULIC PUMP,56 CC
PUMP, Tandem
1шт.
1
87627042R
REMAN-HYDROSTAT PUMP
650L TIER 3 (HYDRO) (2/09-)
1шт.
1
87627042C
CORE-HYDROSTAT PUMP
Return Number
1шт.
2
201-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Inc. 3, 4
1шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
4
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
1шт.
5
429711A1
HOSE ASSY.
Hydrostatic Pump Case Drain
1шт.
6
201-428
TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB
Incl. 7, 8
1шт.
7
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
8
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
2шт.
9
87668201
HOSE
Hydrostatic Case Drain Pump To Tank
1шт.
10
201-318
ELBOW,45 Degree, 1 7/16"-12 x 1 5/16"-12. Adj, ORFS
Inc. 11, 12
1шт.
11
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face Seal End
1шт.
13
86980731
CLAMP
4шт.
14
87753668
O-RING,0.921" ID x 1.199" OD x 0.139"
2шт.
15
864-10040
HEX SOC SCREW,M10 x 40mm, Cl 8.8
8шт.
17
87668199
HOSE
Front Pump to Right Hand Motor-Top
1шт.
18
86980732
CLAMP
4шт.
19
238-6219
O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
2шт.
20
614-12045
BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd
8шт.
21
86625255
WASHER,13.3mm ID x 24.5mm OD x 3mm Thk
8шт.
22
401629A2
HYDROSTATIC MOTOR,80CC
80 cc
1шт.
22
401629A2R
REMAN-HYDROSTAT MOTO
Reman For New PN 401629A2
1шт.
22
401629A2C
CORE-HYDROSTAT MOTOR
Return Number
1шт.
24
827-12045
BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd
4шт.
25
892-11012
LOCK WASHER,M12
4шт.
26
201-348
ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Inc. 27, 28
2шт.
27
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end
1шт.
29
84141210
HOSE
Right Motor U Port Supply
1шт.
30
201-411
TEE,13/16"-16 ORFS x 13/16"-16 Sw Br
Inc. 31
1шт.
32
201-115
HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB
Inc. 33, 34
2шт.
33
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end
1шт.
34
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Face Seal End
1шт.
35
201-433
TEE,1"-14 ORFS x 1"-14 Sw Run
Inc. 36
1шт.
36
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
37
87668202
HOSE
Hydrostatic Pump Inlet
1шт.
38
87668204
HOSE
Hydrostatic Pump Inlet
1шт.
39
515-25238
CLAMP,15/16", Insul, 1/2" Bolt
1шт.
40
D39696
CLAMP,25.40mm - 13.49mm Bolt, CTD
2шт.
41
487704R1
SPACER,3/4" Tube x 1 3/16"
2шт.
42
827-12070
BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9
2шт.
43
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
2шт.
44
412126
NUT,M12 x 1.75
2шт.
45
87683489
HOSE
Hydrostatic Pump Filter Outlets
1шт.
46
87683488
HOSE
Hydrostatic Pump Filter Outlets
1шт.
47
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Inc. 48, 49
2шт.
48
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end
1шт.
50
201-176
HYD CONNECTOR,1 3/16"-12 x 1 1/16"-12, ORFS Lg
Inc. 51, 52
2шт.
51
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
52
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
1шт.
53
87668661
HOSE
Hydrostatic Motor Case Drain
1шт.
54
201-417
TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS
Inc. 55
1шт.
55
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
2шт.
56
87668662
HOSE
Hydrostatic Motor Case Drain To Tank
1шт.
57
201-105
HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB
Inc. 58, 59
1шт.
59
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face Seal End
1шт.
60
87668198
HOSE
Front Pump To Right Hand Motor - Bottom
1шт.
Выбрано товаров: 64
