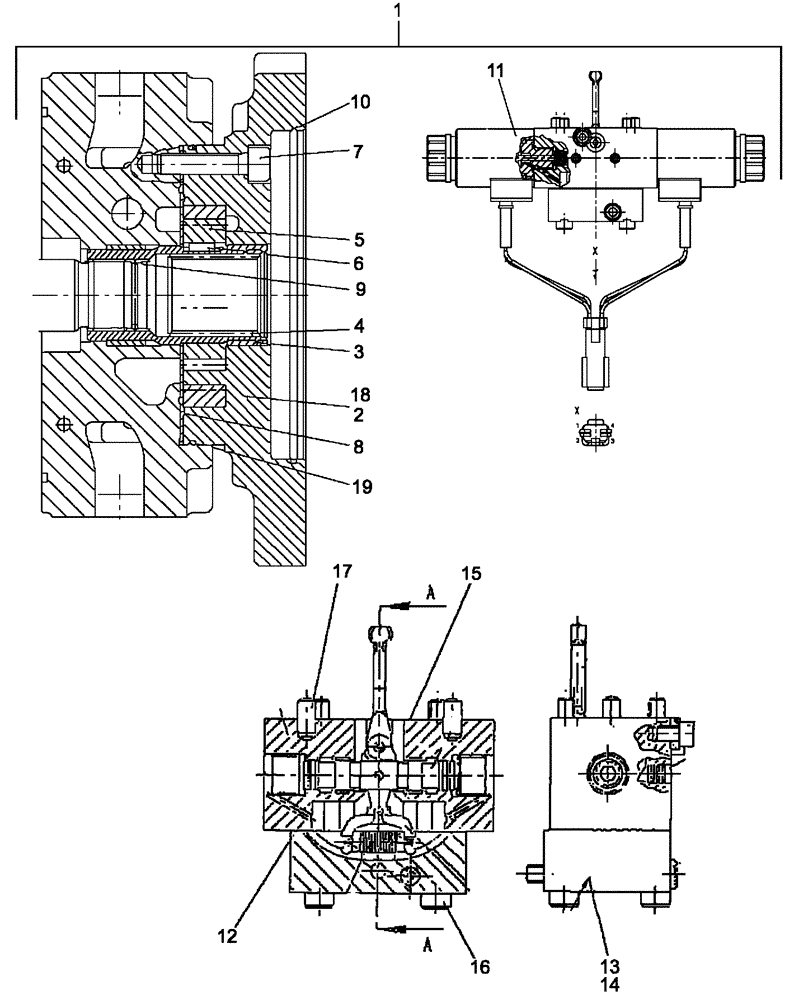

Запчасти Case 650L (29.212.04[04]) - TANDEM PUMP (29) - HYDROSTATIC DRIVE

1

87627042

HYDRAULIC PUMP,56 CC

Tandem Pump, Inc. 2-19

1шт.

1

87627042R

REMAN-HYDROSTAT PUMP

650L TIER 3 (HYDRO) (2/09-)

1шт.

1

87627042C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

87758212

PUMP

1шт.

3

87758213

BUSHING

1шт.

4

87758214

DRIVE SHAFT

Coupling, For Driveshaft See 21

1шт.

5

87758215

WHEEL GEAR

1шт.

6

87758216

KEY

1шт.

7

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

8шт.

8

87758218

RING

2шт.

9

87758219

RING

1шт.

10

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

11

87758223

SOLENOID

Proportional

1шт.

12

87758224

GASKET

1шт.

13

87516860

COVER

1шт.

14

87516863

FILTER

Contol Module

1шт.

15

87444198

GASKET

1шт.

16

87441423

BOLT,Skt Hd, M6 x 65mm, Gr 8.8

4шт.

17

87516861

PIN

2шт.

18

87758226

PUMP

1шт.

19

87758220

O-RING,107.62mm ID x 2.62mm Width

1шт.

20

87516862

SEAL KIT

Control Module (Not Shown)

1шт.

21

328712A2

FLEXIBLE DRIVE SHAFT

1шт.
