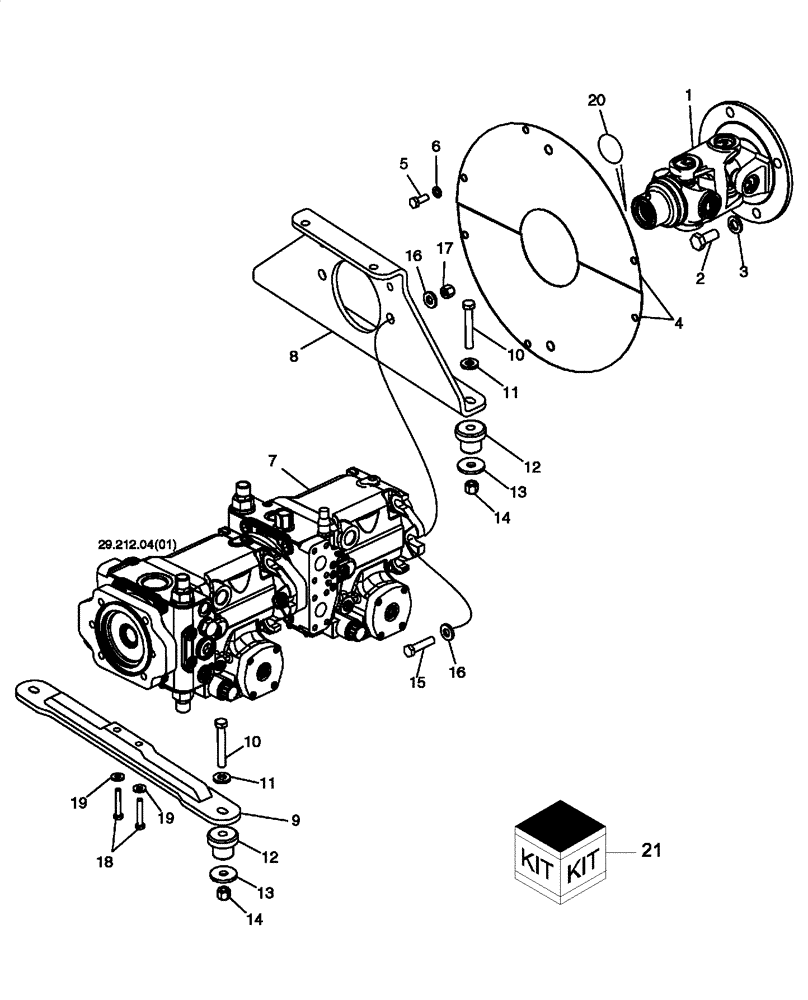

Запчасти Case 650L (29.212.01) - MOUNTING - PUMP, HYDROSTATIC TANDEM AND DRIVESHAFT (29) - HYDROSTATIC DRIVE

1

328712A2

FLEXIBLE DRIVE SHAFT

Component Parts Not Serviced Separately; Order 87400942 Kit For Service

1шт.

2

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

385750A1

COVER

Flywheel Housing

2шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

6шт.

6

892-11010

LOCK WASHER,M10

6шт.

7

87627042

HYDRAULIC PUMP,56 CC

Tandem; Standard, Models Without PTO

1шт.

7

87627042R

REMAN-HYDROSTAT PUMP

650L TIER 3 (HYDRO) (2/09-)

1шт.

7

87627042C

CORE-HYDROSTAT PUMP

Return Number

1шт.

8

87620920

BRACKET, SUPPORTING

Front Pump

1шт.

9

87721055

BRACKET

Rear Pump Support

1шт.

10

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

12

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

Front Mount

4шт.

13

D25022

WASHER

4шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

15

814-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 8.8

2шт.

16

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

17

832-10416

NUT,M16 x 2, Cl 8

2шт.

18

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

19

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

20

87744686

SEAL

Oil

1шт.

21

87400942

UNIVERSAL JOINT

Driveshaft U-Joint; Incl (4) 87280463 Snap rings, Plus A Cross Bearing Kit Which Is Not Serviced Separately that Inc. (1) Spider, (4) Bearings, (4) Snap rings, (4) Lock Plates, (8) Bolts

1шт.
