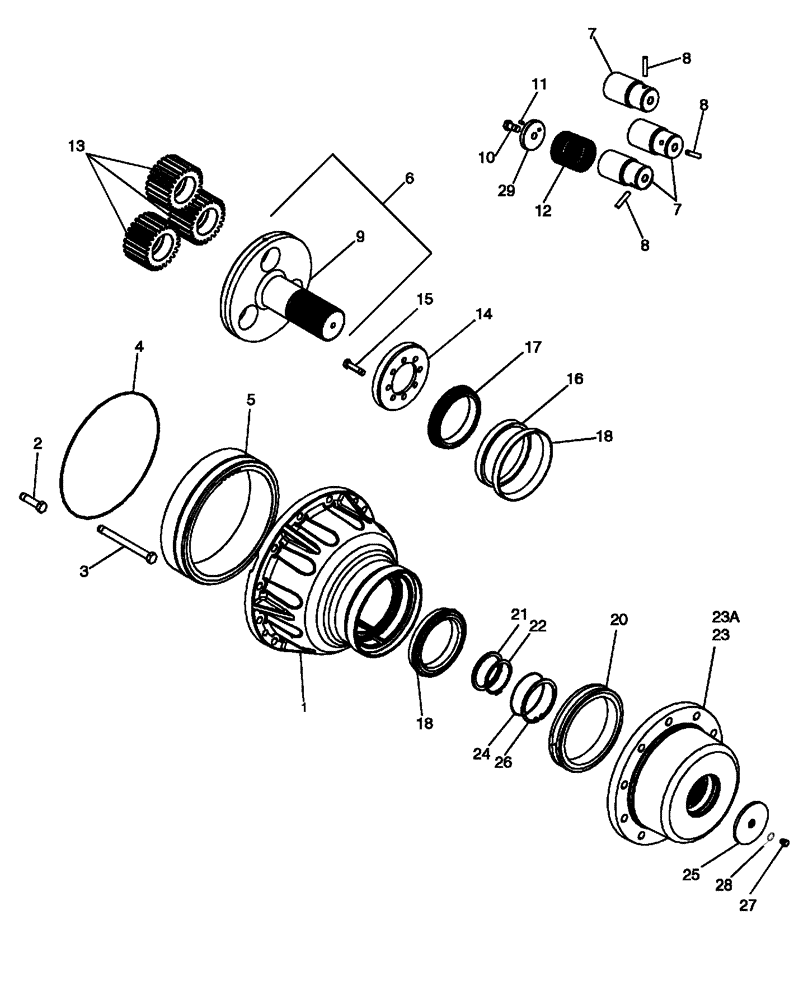

Запчасти Case 650L (27.126.03) - FINAL DRIVE, HUB (27) - REAR AXLE SYSTEM

385250A4

DRIVE ASSY.

Final Drive Assembly; 1448 mm (57 inch) Gauge Long Track (LT) Models; Inc. 1 - 23, 24 - 27; Also Inc. Figure 27.126.02, 1 - 39

2шт.

87724629R

REMAN-AXLE

650L TIER 3 (2/09-), Reman For New P/N 385250A4

2шт.

87724629C

CORE-AXLE

Return Number

1шт.

385251A4

DRIVE ASSY.

Final Drive Assembly; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; Inc. 1 - 22, 23A, 24 - 27; Also Inc. Figure 27.126.02, 1 - 39

2шт.

87724630R

REMAN-FINAL DRIVE

650L TIER 3 (HYDRO) (2/09-), Reman for new PN 385251A4

2шт.

87724630C

CORE-FINAL DRIVE

Return Number

1шт.

1

385217A3

HUB

Wheel Housing

1шт.

2

87028191

BOLT,Hex, M16 x 60mm, Cl 10.9, Full Thd

Locking

6шт.

3

87028192

BOLT,Hex, M16 x 170mm, Cl 10.9

Locking, M16 x 170; 10.9

6шт.

4

238-5279

O-RING,0.139" Thk x 12.984" ID, -279, Cl 5, 75 Duro

1шт.

5

385220A3

PLANETARY GEAR

65 T; Planetary Ring

1шт.

6

385262A4

PLANET CARRIER

Includes 7-9

1шт.

7

NSS

NOT SOLD SEPARAT

Pin

3шт.

8

NSS

NOT SOLD SEPARAT

Pin, Grooved, 3/8 x 1-3/4

3шт.

9

NSS

NOT SOLD SEPARAT

Carrier, Hub

1шт.

10

606-12025

BOLT,Hex, M12 x 25mm, Cl 10.9

Locking

3шт.

11

837-5010

DOWEL,M5 x 10

3шт.

12

385258A1

ROLLER BEARING,Needle, 5.99mm OD x 26.16mm L

198шт.

13

385221A2

PLANETARY GEAR

25 T

3шт.

14

385205A1

RETAINING PLATE

Bearing

1шт.

15

87018613

BOLT,Hex, M12 x 50mm, Cl 10.9

8шт.

16

385271A1

BEARING CUP,169.86mm OD x 20.64mm W

1шт.

17

385270A1

BEARING ASSY,127mm ID x 26.2mm W

1шт.

18

385211A1

BEARING CUP,185mm OD x 21mm W

1шт.

19

385210A1

BEARING ASSY,130mm ID x 27mm W

1шт.

20

385223A1

SEAL,179.05mm ID x 218.72mm OD x 41.83mm Thk

Oil

1шт.

21

385249A2

WASHER

1шт.

22

800-1182

SNAP RING,M82, Ext

1шт.

23

385213A3

FLANGE

Long Track (LT) Models

1шт.

23a

385228A3

FLANGE

Wide Track (WT) or Low Ground Pressure (LGP) Models

1шт.

24

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

1шт.

25

385214A2

END PLATE

Wheel

1шт.

27

233426A1

PLUG,M10 x 1 ORB

Includes 28

1шт.

28

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

29

385231A1

WASHER

(Not Shown)

3шт.
