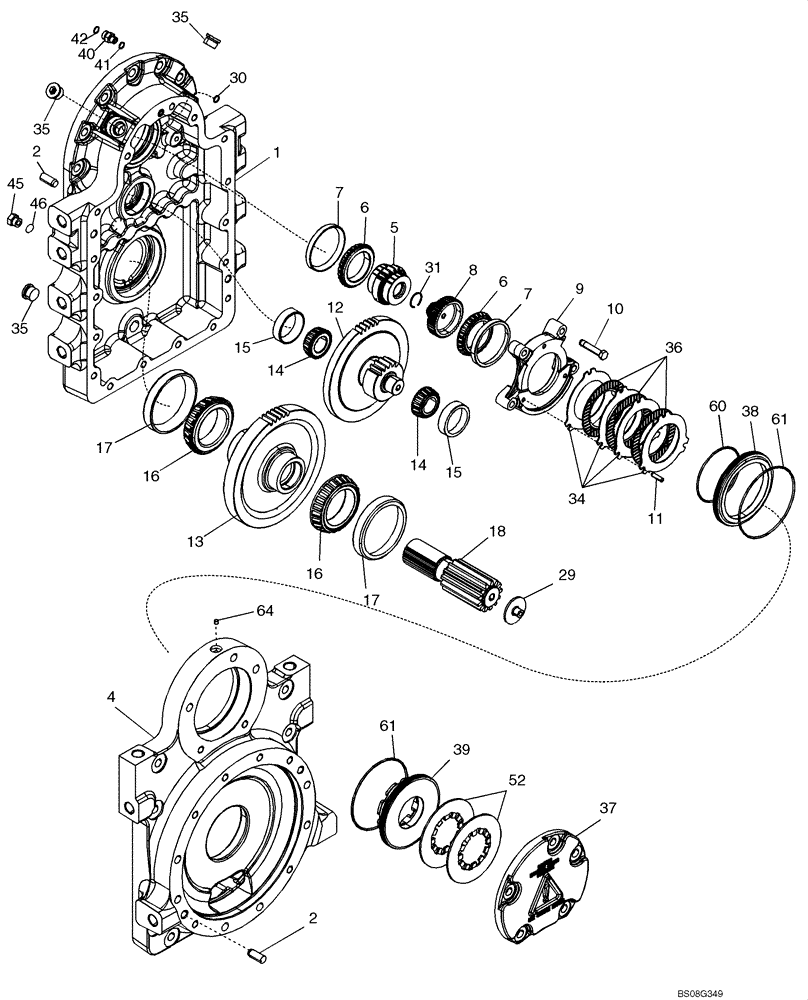

Запчасти Case 650L (27.126.02) - FINAL DRIVE, DROP HOUSING (27) - REAR AXLE SYSTEM

385250A4

DRIVE ASSY.

Final Drive Assembly; 1448 mm (57 inch) Gauge Long Track (LT) Models; Also Inc. Figure 27.126.03, Ref 1 - 23, 24 -27

2шт.

87724629R

REMAN-AXLE

650L TIER 3 (2/09-), Reman For New P/N 385250A4

2шт.

87724629C

CORE-AXLE

Return Number

1шт.

385251A4

DRIVE ASSY.

Final Drive Assembly; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; Also Includes Figure 27.126.03, Ref 1 - 22, 23A, 24 - 27

2шт.

87724630R

REMAN-FINAL DRIVE

650L TIER 3 (HYDRO) (2/09-), Reman for new PN 385251A4

2шт.

87724630C

CORE-FINAL DRIVE

Return Number

1шт.

1

87446295

HOUSING

Drop

1шт.

2

837-16040

DOWEL,M16 x 40

6шт.

3

837-8020

DOWEL,8mm OD x 20mm L

2шт.

4

385209A6

HOUSING

Center

1шт.

5

385202A2

GEAR

1шт.

6

385264A1

BEARING ASSY,66.67mm ID x 17.25mm W

2шт.

7

385265A1

BEARING CUP,103.21mm OD x 11.99mm W

2шт.

8

385239A2

CLUTCH INPUT SHAFT

1шт.

9

385246A4

BEARING HOUSING,96 mm ID

Input Bearing

1шт.

10

608-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

4шт.

11

837-8030

DOWEL,M8 x 30

3шт.

12

385275A1

GEAR

1шт.

13

385276A1

GEAR

1шт.

14

385266A1

BEARING ASSY,34.92 mm ID x 24.608 mm

2шт.

15

385267A1

BEARING CUP

2шт.

16

385268A1

BEARING ASSY,82.55 mm ID x 29.769 mm

2шт.

17

385269A1

BEARING CUP

2шт.

18

385222A1

GEAR SHAFT

1шт.

29

1981270C1

INSERT

1шт.

30

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

31

385240A1

RING, LOCKING

RING, LOCK

1шт.

34

385244A2

BRAKE PLATE

Separator

4шт.

35

218-5212

PLUG,1-1/16" - 12 ORB

Includes O-Ring 237-6012

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

84163978

DISC

Clutch Friction Plate

3шт.

37

385277A1

PROTECTIVE COVER

Center Housing

1шт.

38

385243A2

BRAKE PLATE

Piston

1шт.

39

385248A2

BRAKE PLATE

Piston

1шт.

40

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 41, 42

1шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

42

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

45

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

1шт.

52

1997880C1

SPRING,70.15mm ID x 155mm OD x 3.5mm Thk

2шт.

54

238-7163

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

1шт.

60

385236A2

SEALING RING

SEALRING

1шт.

61

385237A2

SEALING RING,3.48mm Thk x 156.59mm ID, 70 Duro

SEALRING

2шт.

64

87520608

EXPANSION PLUG,8mm

1шт.
