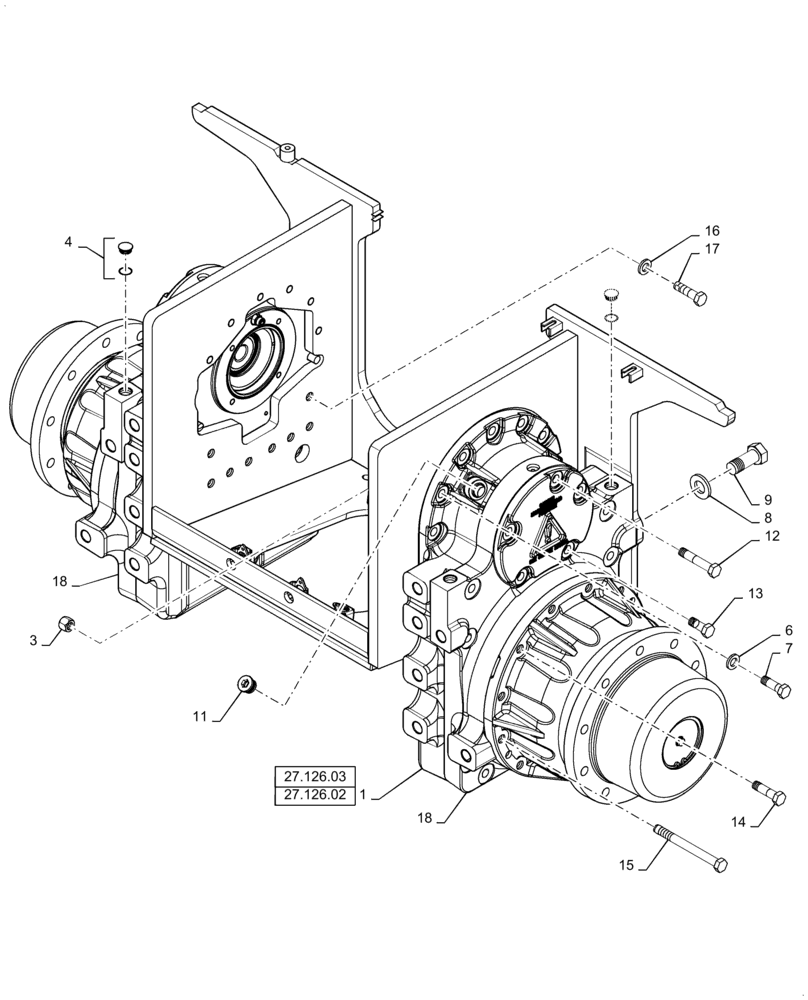

Запчасти Case 650L (27.126.01) - MOUNTING - FINAL DRIVE (27) - REAR AXLE SYSTEM

87695846

TRANSMISSION

Long Track Models; Inc. 385250A4 Final Drive

1шт.

87695847

TRANSMISSION

Wide Track or Low Ground Pressure Models; Includes 385251A4 Final Drive

1шт.

1

385250A4

DRIVE ASSY.

Final Drive; 1448 mm (57 inch) Gauge Long Track (LT) Models

2шт.

87724629R

REMAN-AXLE

650L TIER 3 (2/09-), Reman For New P/N 385250A4

2шт.

87724629C

CORE-AXLE

Return Number

1шт.

1

385251A4

DRIVE ASSY.

Final Drive; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models

2шт.

87724630R

REMAN-FINAL DRIVE

650L TIER 3 (HYDRO) (2/09-), Reman for new PN 385251A4

2шт.

87724630C

CORE-FINAL DRIVE

Return Number

1шт.

3

832-10416

NUT,M16 x 2, Cl 8

2шт.

4

353-432

PLUG,7/8" Hole, Nylon

Flat Face

4шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

16шт.

7

608-16050

BOLT,Hex, M16 x 50mm, Cl 10.9

Locking

14шт.

8

496-31106

WASHER,1 1/16" x 2" x .219", HDN

10шт.

9

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

10шт.

11

218-5212

PLUG,1-1/16" - 12 ORB

Inc. O-Ring 637-63153

2шт.

12

608-16085

BOLT,Hex, M16 x 85mm, Cl 10.9

11шт.

13

608-16040

BOLT,Hex, M16 x 40mm, Cl 10.9

2шт.

14

87028191

BOLT,Hex, M16 x 60mm, Cl 10.9, Full Thd

NOTE: LOOK AT PLACEMENT IN ART

6шт.

15

87028192

BOLT,Hex, M16 x 170mm, Cl 10.9

NOTE: LOOK AT PLACEMENT IN ART

6шт.

16

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

16шт.

17

87652887

BOLT,Hex, M16 x 60mm, Cl 10.9

BOLT

16шт.

18

47761795

FINAL DRIVE

Painted

2шт.
