(10.406.04) - COOLANT RECOVERY SYSTEM

Запчасти Case 650L (10.406.04) - COOLANT RECOVERY SYSTEM (10) - ENGINE

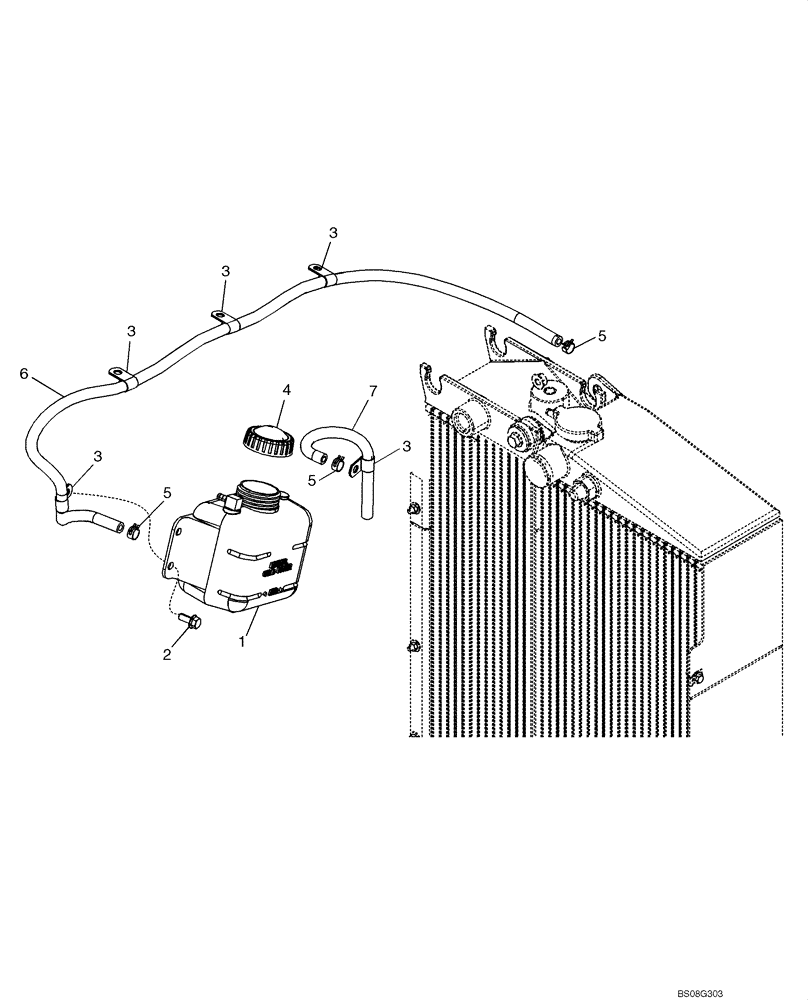

Схема запчастей Case 650L - (10.406.04) - COOLANT RECOVERY SYSTEM (10) - ENGINE
3
3
5
5
7
3
6
1
2
3
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87702299

BOTTLE

Coolant Recovery

1шт.

2

905-8020

BOLT,Hex Flg, M8 x 20mm

4шт.

3

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

4шт.

4

A184079

CAP

Non- Vented With Tether

1шт.

5

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

6

87744675

RADIATOR HOSE,7.90 mm ID x 1435.00 mm, SAE 20R3 Class D2 Or SAE 30R7

Coolant Recovery

1шт.

7

87703788

RADIATOR HOSE,7.90 mm ID x 660.00 mm, SAE 20R3 Class D2 Or SAE 30R7

Coolant Overflow, Cut from pt# L126767

1шт.

8

L100659

CLIP

(Not Shown) Used on Overflow hose

2шт.
