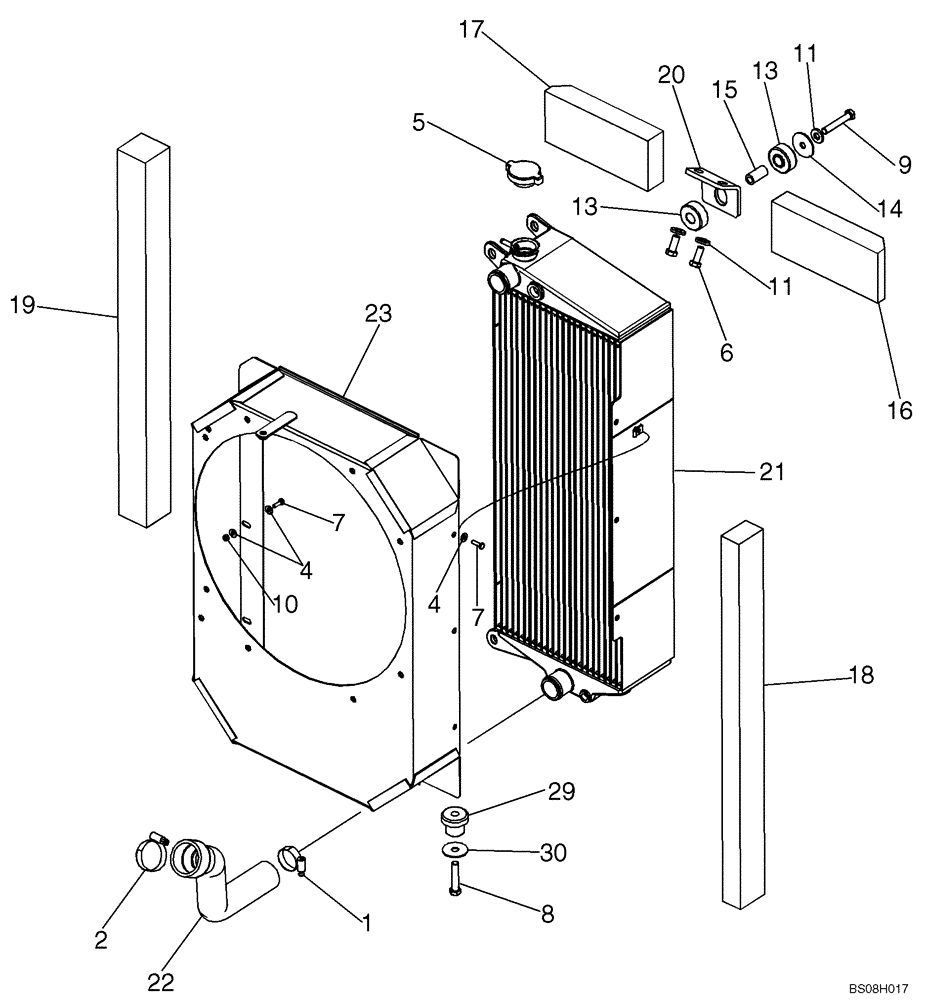

Запчасти Case 650L (10.406.02) - RADIATOR - MOUNTING (10) - ENGINE

1

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

1шт.

2

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

1шт.

4

495-11028

WASHER,1/4", SAE

9шт.

5

A170241

RADIATOR CAP

1шт.

6

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

7

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

8

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

9

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

10

825-1406

NUT,M6, Cl 8

3шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

13

4977098

ISOLATOR

2шт.

14

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

1шт.

15

4977100

SPACER

1шт.

16

84145273

FOAM

Radiator Top - Right Hand

1шт.

17

84145274

FOAM

Radiator Top - Left Hand

1шт.

18

84145621

FOAM

Radiator Side - Right Hand

1шт.

19

84145886

FOAM

Radiator Side - Left Hand

1шт.

20

87654544

BRACKET

Upper Radiator Mount

1шт.

21

87654545

RADIATOR

Cooling

1шт.

22

87674775

RADIATOR HOSE,45.00 mm ID, 58.00 mm ID x 334.80 mm, SAE 20R4 Class C Or SAE 20R4 Class D1

Lower

1шт.

23

87675746

SHROUD

Engine Fan

1шт.

29

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

2шт.

30

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

2шт.
