(10.402.02[01]) - THERMOSTAT - ENGINE COOLING SYSTEM

Запчасти Case 650L (10.402.02[01]) - THERMOSTAT - ENGINE COOLING SYSTEM (10) - ENGINE

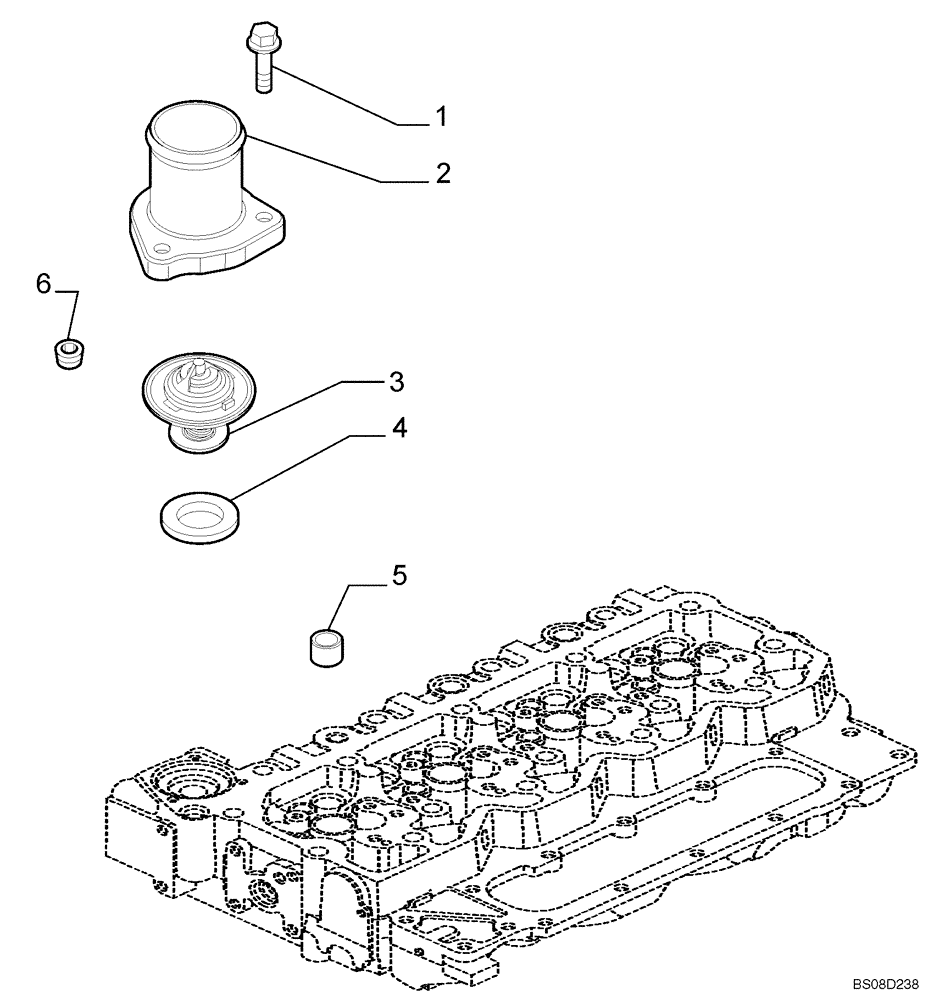

Схема запчастей Case 650L - (10.402.02[01]) - THERMOSTAT - ENGINE COOLING SYSTEM (10) - ENGINE
5
6
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

2

4895131

HOUSING

1шт.

3

2858074

THERMOSTAT

Inc. 4

1шт.

4

2852473

GASKET,53.62mm ID x 59.72mm OD x 4.01mm Thk

1шт.

5

4893036

PIPE PLUG,3/4"-14 NPTF

Alternate part

1шт.

5

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

Alternate part

1шт.

6

4895078

PIPE PLUG,1/2"-14

4шт.

7

2854491

PLUG,Taper Pipe, Hex, 1/4" - 18 x 14.224mm

Engine Coolant Vent, (Not Shown)

1шт.
