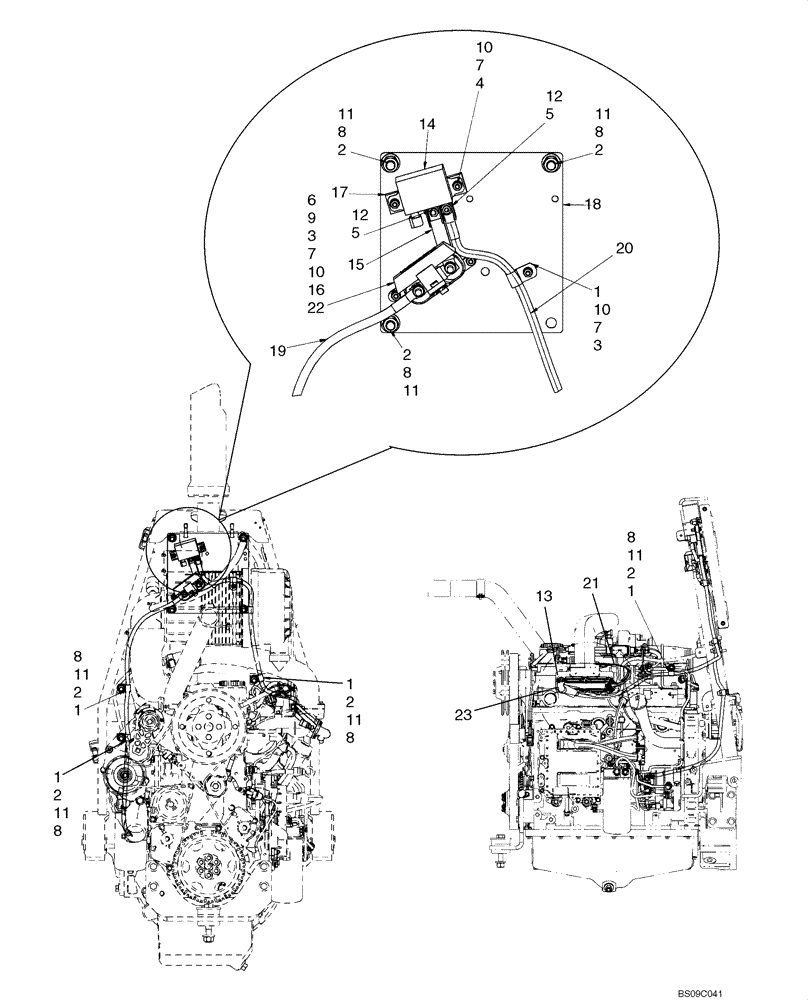

Запчасти Case 650L (10.254.06) - GRID HEATER WITH RELAY (10) - ENGINE

1

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

2

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

7шт.

3

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

4

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

2шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

5шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

7шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

13

2854837

HEATER

1шт.

14

86619908

RELAY,12V, 150A

Cold Start

1шт.

15

87410265

BAR

Cold Start, Fuse To Relay

1шт.

16

87410602

FUSE,300A, Blade

300 AMP

1шт.

17

87414237

PLATE,25mm W x 102mm L x 10mm Thk

Bar 10 mm Spacer

1шт.

18

87478944

BRACKET

Grid Heater Mount

1шт.

19

87488422

CABLE

From Block Fuse To Starter

1шт.

20

84245403

CABLE

From Relay to Grid Heater

1шт.

21

87717884

GROUND STRAP

Cold Start

1шт.

22

440038A1

JUNCTION BLOCK

1шт.

23

L126713

BOOT

1шт.

24

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

(Not Shown)

1шт.
