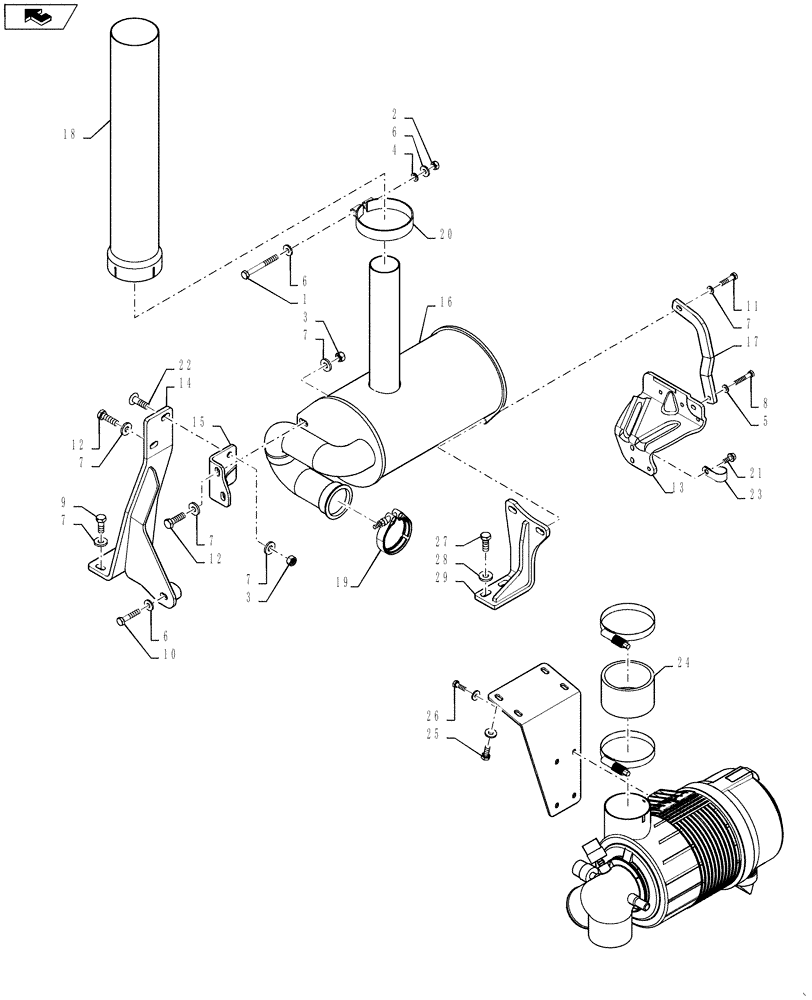

Запчасти Case 650L (10.254.03) - MUFFLER - EXHAUST SYSTEM (10) - ENGINE

1

614-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

2

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

3

829-1412

NUT,M12, Cl 10.9

6шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

7шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

15шт.

8

86639210

BOLT,Hex, M8 x 45mm, Cl 10.9

1шт.

9

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

10

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

11

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

12

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

13

87666514

BRACKET

Fuel Filter Mounting

1шт.

14

84122693

BRACKET, SUPPORTING

Muffler Rear Mount

1шт.

15

84122694

BRACKET, SUPPORTING

Muffler Mount Right Hand

1шт.

16

84136594

MUFFLER

Turbo

1шт.

17

84149990

BRACKET

1шт.

18

189279A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

19

A170467

CLAMP,72mm ID

1шт.

20

R27699

CLAMP,114.3mm

1шт.

21

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

2шт.

22

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

23

515-23254

CLAMP,1", Insul, 3/8" Bolt

(Not Shown)

1шт.

24

84152782

SPACER

(Not Shown), 25mm OD x 10mm ID x 9.5mm Thick

1шт.

25

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

26

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

27

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

15шт.

29

84122692

SUPPORT

1шт.
