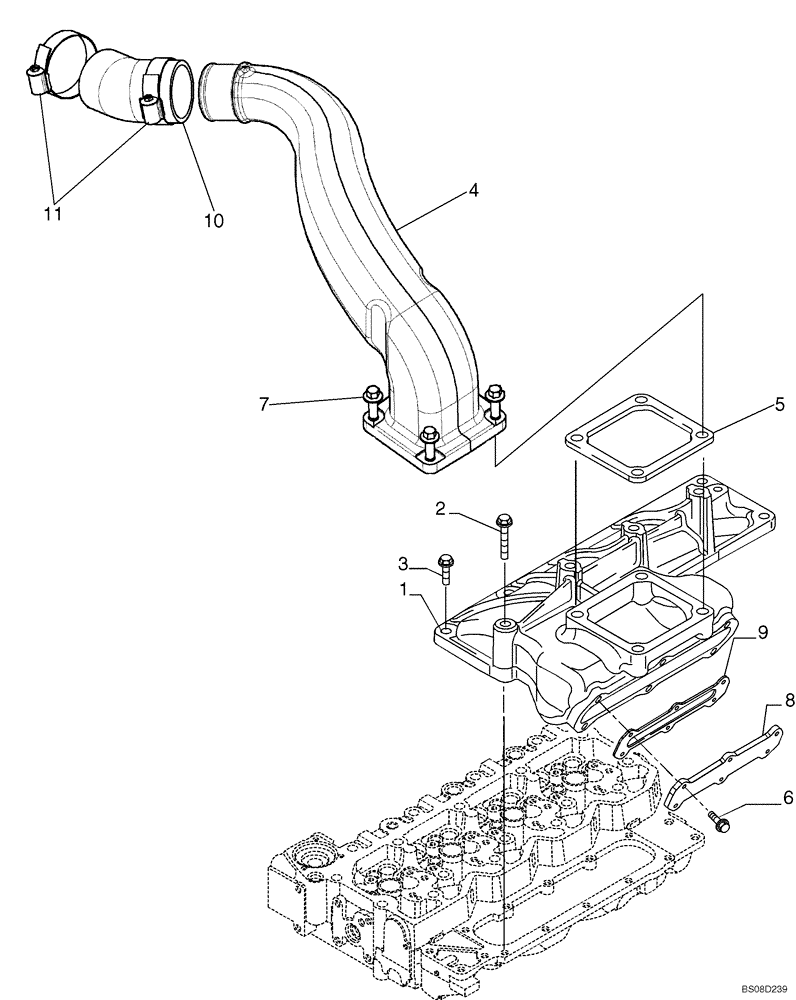

Запчасти Case 650L (10.254.01) - INTAKE MANIFOLD (10) - ENGINE

1

2855805

INLET MANIFOLD

1шт.

2

4895432

SCREW,M8 x 1.25 x 70mm

1шт.

3

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

6шт.

4

2857059

INTAKE AIR HOSE

Plain

1шт.

5

4899921

GASKET,1.2mm Thk

1шт.

6

2854702

SCREW,Hex Flg, M6 x 20mm

M6 x 20

6шт.

7

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

4шт.

8

2854700

COVER

1шт.

9

2854701

GASKET,0.8mm Thk

1шт.

10

2857060

HYD CONNECTOR

Air transfer

1шт.

11

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

2шт.
