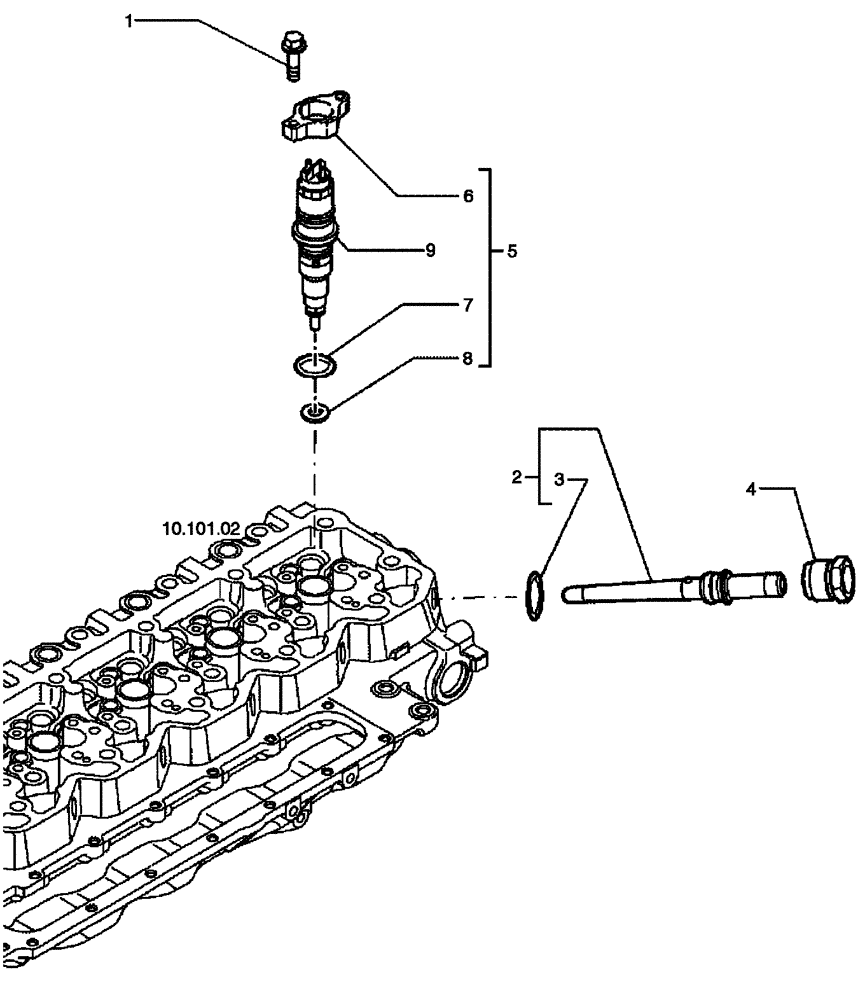

Запчасти Case 650L (10.218.02) - FUEL INJECTION SYSTEM - INJECTOR (10) - ENGINE

1

4895483

BOLT,Flng, M6 x 1 x 35mm

8шт.

2

2854606

FUEL TUBE,Connector Assembly

Inc. 3

4шт.

3

4890929

O-RING,3mm Thk x 11mm ID

1шт.

4

4893739

TUBE NUT,Hex, M22 x 1.5

4шт.

5

2854608

FUEL SYSTEM INJECTOR

Inc. 6, 7, 8

4шт.

5

2854608R

REMAN-FUEL INJECTOR

650L Hydro Tier 3 (2/09)

4шт.

5

2854608C

CORE-FUEL INJECTOR

Return Number

4шт.

6

2854609

BRACKET

1шт.

7

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

20.9 ID x 3.0 dia

1шт.

8

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

1шт.

9

2856202

1шт.
