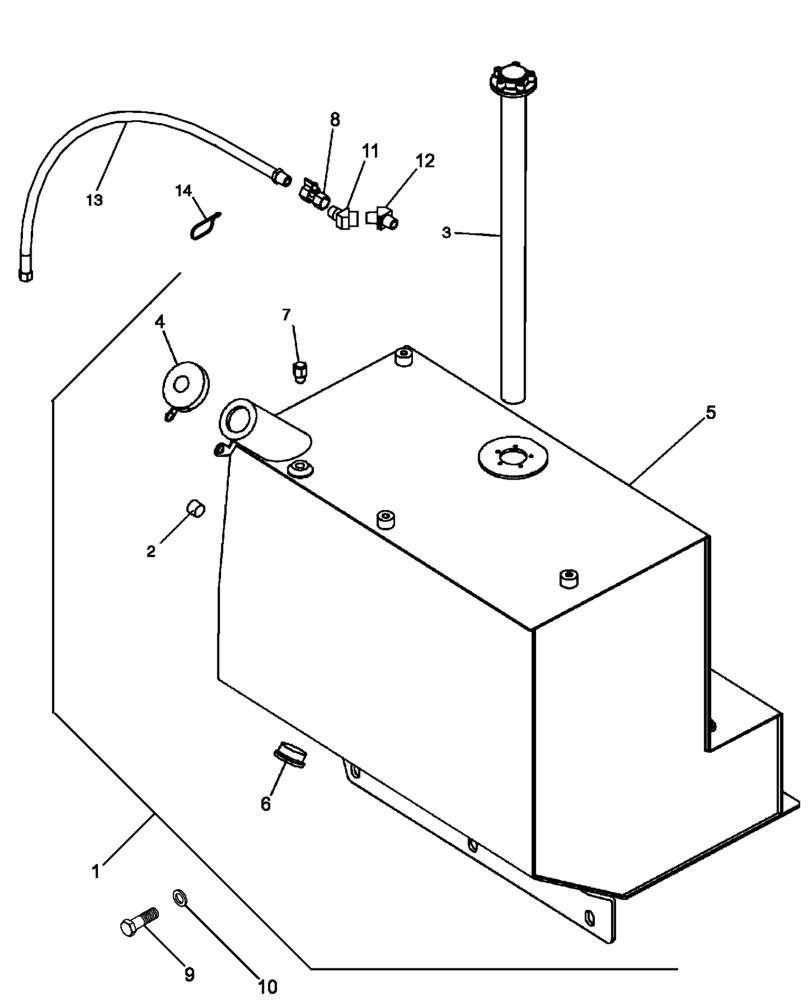

Запчасти Case 650L (10.216.01) - FUEL TANK (10) - ENGINE

1

87617546

TANK

Complete, Inc. 2-7

1шт.

2

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

3

87583890

SENDER UNIT

SENDER

1шт.

4

130049A1

FILLER CAP

1шт.

5

87617542

FUEL TANK

Tank

1шт.

6

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

1шт.

7

130047A1

BREATHER ASSY.

Breather Assy

1шт.

8

86599520

RESTRICTOR VALVE

1шт.

9

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

3шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

11

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

1шт.

12

217-1209

ELBOW

1шт.

13

87413240

HOSE ASSY.

Drain

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
