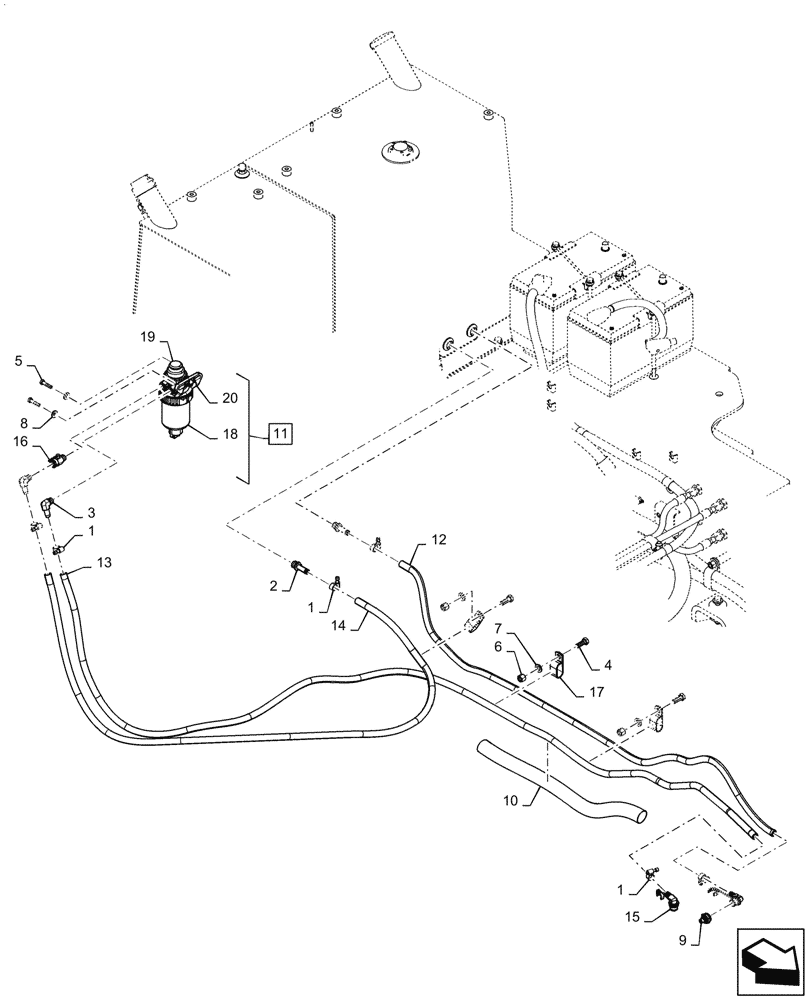

Запчасти Case 650L (10.214.01) - FUEL LINES (10) - ENGINE

1

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

6шт.

2

217-182

FITTING,1/2" Hose Barb x 3/4" - 16 Male ORB

2шт.

3

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

2шт.

4

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

3шт.

5

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

8

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

9

8602557

FITTING,M12 x 1.5

1шт.

10

84148989

SLEEVE

Nylon Sleeve (640.3mm)

1шт.

11

84164617

FILTER ASSY

Head, Water Separator W/O Heater, Incl 18,19

1шт.

12

84189263

FUEL HOSE,12.70 mm ID x 1530.00 mm, SAE 30R2

1шт.

13

84338961

HOSE ASSY.,12.5mm ID x 3089mm L

1шт.

Service With Bulk Hose S118466

1шт.

14

84338962

HOSE ASSY.,12.5mm ID x 1950mm L

1шт.

Service With Bulk Hose S118466

1шт.

15

87442270

FITTING

Fuel

2шт.

16

284721A1

VALVE

Fuel

1шт.

17

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

3шт.

18

87803444

FUEL FILTER,79.2mm OD x 109.2mm L

Spin-on, Element, Incl in 11

1шт.

19

87612475

SENSOR

Water in Fuel, Incl in 11

1шт.

20

NSS

NOT SOLD SEPARAT

Filter Head, Incl in 11

1шт.
