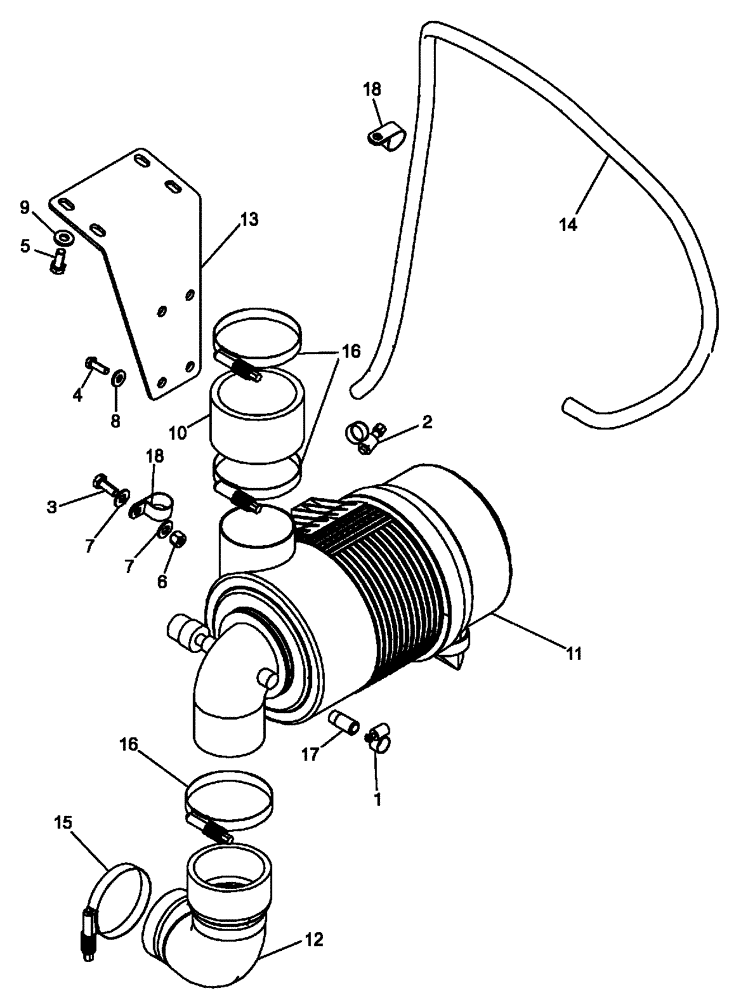

Запчасти Case 650L (10.202.02) - AIR CLEANER - MOUNTING (10) - ENGINE

1

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

2

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

10

84192618

INTAKE AIR HOSE,98.25 mm ID x 68.00 mm, SAE J200

Air Cleaner

1шт.

11

87434701

AIR CLEANER

1шт.

12

87677047

INTAKE AIR HOSE,75.50 mm ID, 88.90 mm ID x 167.00 mm, SAE J200

Air Cleaner To Turbo

1шт.

13

87680853

BRACKET, SUPPORTING

Air Cleaner

1шт.

14

87739486

HOSE,19.05 mm ID x 1570 mm, SAE 100R6

CCV

1шт.

15

L127771

CLAMP,107.95mm - 130.18mm

2шт.

16

L124635

HOSE CLAMP

2шт.

17

L17985

FITTING,3/8" - 18 NPT

1шт.

18

R43738

CLAMP

2шт.
