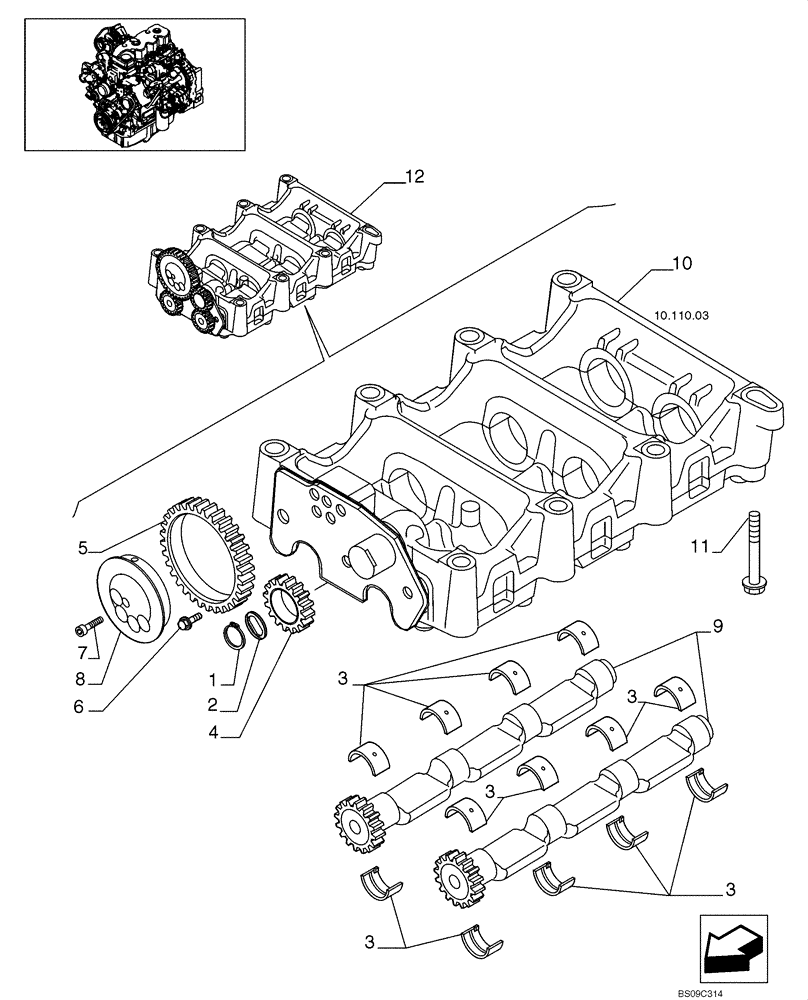

Запчасти Case 650L (10.110.02) - DYNAMIC BALANCER, GEARS & SHAFTS (10) - ENGINE

1

4897125

SNAP RING,Ext, M23

1шт.

2

2855753

THRUST PLATE

1шт.

3

2855747

BEARING SET

16шт.

4

4897048

IDLER GEAR

Alternate to Part 2855750

1шт.

4

2855750

IDLER GEAR

Alternate to Part 4897048

1шт.

5

4896947

IDLER GEAR

Alternate to Part 2855748

1шт.

5

2855748

IDLER GEAR

Alternate to Part 4896947

1шт.

6

4895586

SCREW,Hex, Flg Hd, M8 x 16

3шт.

7

2830433

HEX SOC SCREW

5шт.

8

2831031

IDLE SHAFT

1шт.

9

2831354

SHAFT

2шт.

10

2855744

HOUSING

1шт.

11

4899109

SCREW,Hex, M10 x 1.5 x 80

7шт.

11

4897934

SCREW,Hex, Flg Hd, M10 x 100

1шт.

12

2855743

BALANCER

Inc. 1 - 10

1шт.
