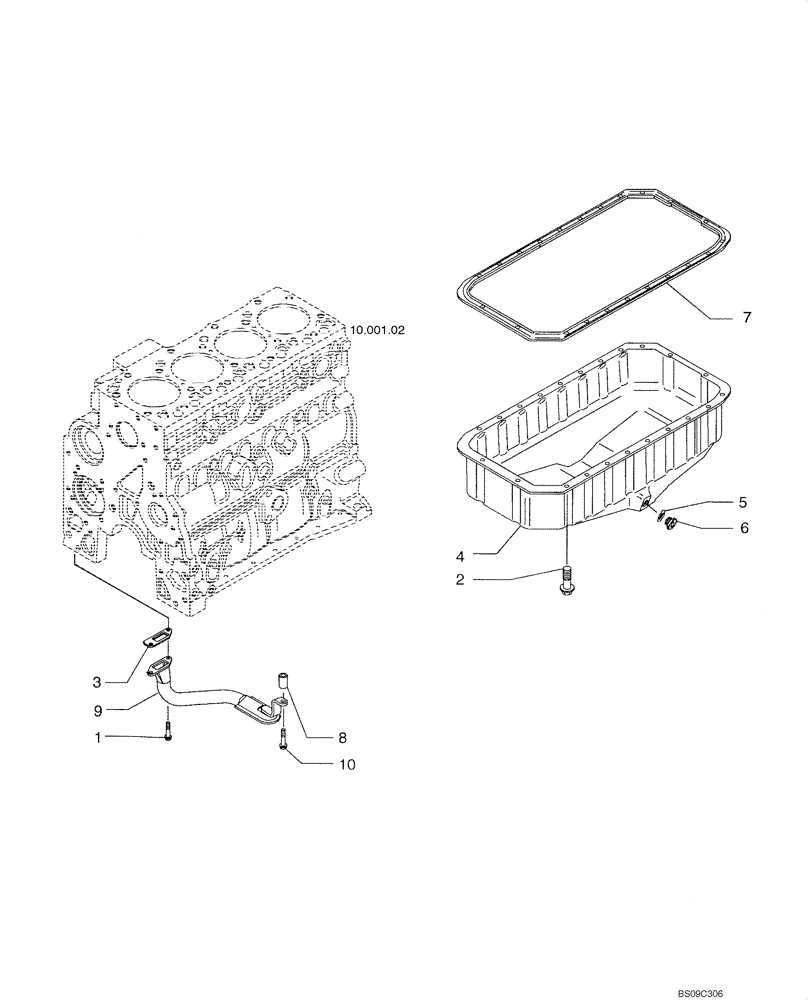

Запчасти Case 650L (10.102.01) - OIL PUMP, PAN (10) - ENGINE

1

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

22шт.

2

4895489

FLANGE BOLT,Hex, M8 x 1.25 x 110mm

2шт.

3

4898301

GASKET,0.42mm Thk

Strainer

1шт.

4

2852011

ENGINE OIL PAN

1шт.

5

2853728

O-RING,M23.47 ID x 2.62 Thk

Replaces 2852978

1шт.

6

2856086

PLUG

Oil Pan

1шт.

7

2852012

OIL PAN GASKET SET

Oil Pan

1шт.

8

2852016

SPACER,11mm ID x 22mm OD x 39mm L

1шт.

9

2852013

STRAINER ELEMENT

Tube; Oil Suction, Includes Screen Which Is Not Serviced Separately

1шт.

10

4895538

FLANGE BOLT,Hex, M10 x 1.5 x 120mm

1шт.
