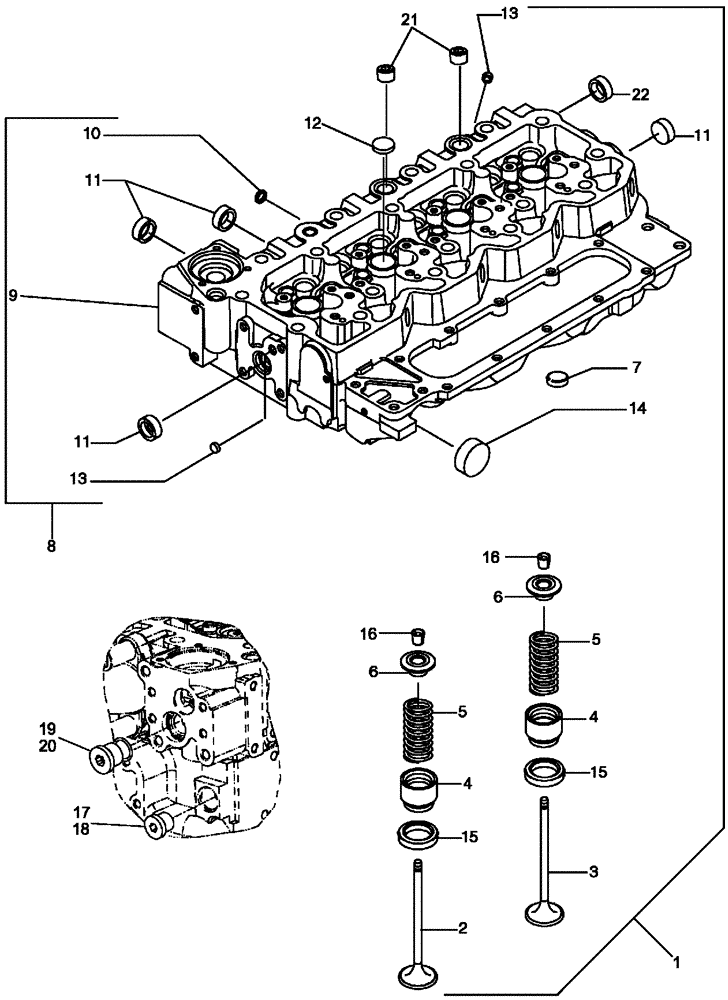

Запчасти Case 650L (10.101.02) - CYLINDER HEAD (10) - ENGINE

1

NS

NOT SERVICED

Inc. 2-22

1шт.

2

4895051

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

8шт.

3

4895052

STD INLET VALVE

STD ENGINE INLET VALVE

8шт.

4

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

Valve Stem Seal

16шт.

5

2831473

VALVE SPRING,Compression, 18.8mmOD x 45.2mm L

16шт.

6

4895074

CUP,18mm ID

Retainer

16шт.

7

4893036

PIPE PLUG,3/4"-14 NPTF

3шт.

8

2831266

CYLINDER HEAD,4 Cylinders

Inc. 9-15

1шт.

8

47507108R

REMAN-CYLINDER HEAD

Completely Assembled With Valves

1шт.

8

47507108C

CORE-HYD CYLINDER

Return Number

1шт.

9

NSS

NOT SOLD SEPARAT

Cylinder Head

1шт.

10

4895408

PLUG,0.511" L

.511" OD

2шт.

11

4895085

EXPANSION PLUG,25.74mm

OD

9шт.

12

4895089

PLUG,0.886" L

.886" OD

7шт.

13

4895406

EXPANSION PLUG,9.8mm OD

5шт.

14

4895407

EXPANSION PLUG,38.28mm OD

1шт.

15

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

16шт.

16

4899081

ROCKER ARM COTTER

32шт.

17

4895392

HEX SOCKET PLUG,M18 x 1.5

Engine Oil Torque Converter, Inc. 18

1шт.

18

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

19

4895605

HEX SOCKET PLUG,M14 x 1.5

Engine Oil Torque Converter, Inc. 20

1шт.

20

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

21

4895078

PIPE PLUG,1/2"-14

Cabin Heater

2шт.

22

4893036

PIPE PLUG,3/4"-14 NPTF

Cabin Heater

1шт.
