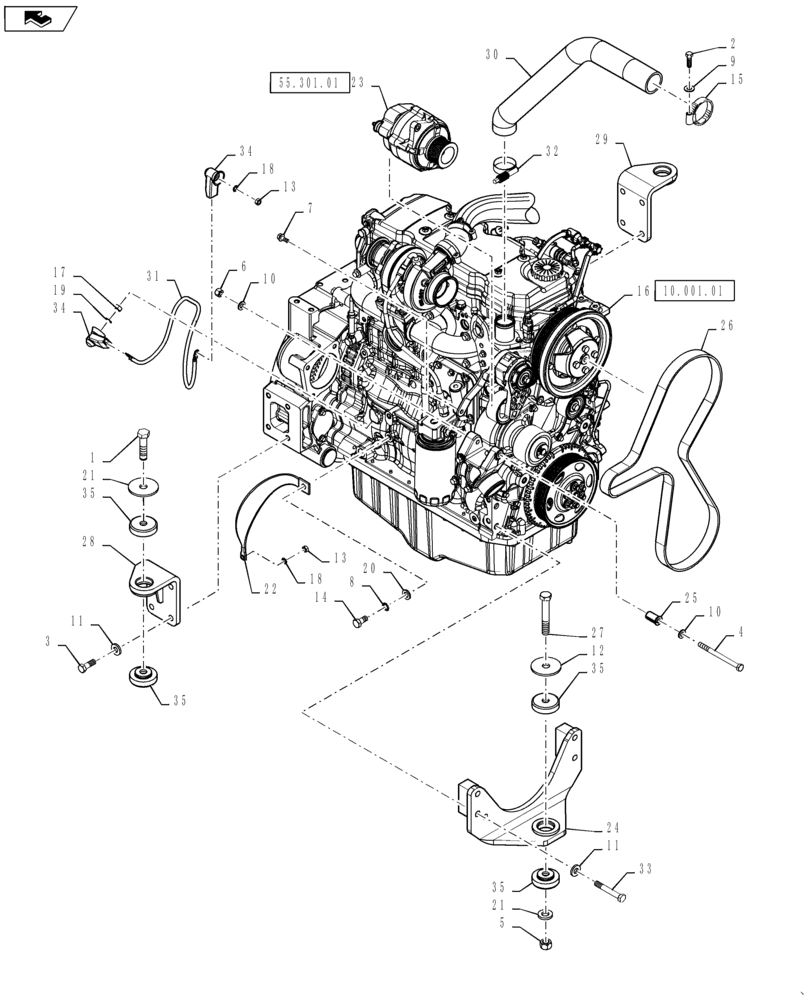

Запчасти Case 650L (10.001.AK) - NEF ENGINE INSTALLATION (10) - ENGINE

1

608-16065

BOLT,M16 x 65mm, Cl 10.9

2шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

4

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

5

829-1416

NUT,M16, Cl 10

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

7

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

1шт.

8

893-11012

LOCK WASHER,Ext Tooth, M12

1шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

10

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

12шт.

12

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

2шт.

14

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

1шт.

15

R57155

CLAMP

1шт.

16

84191487

ENGINE,60kW, 4.5L, 4 Cylinders, W/ Turbocharger

80 hp (60 kw), 4 Cyl. Turbocharged Engine

1шт.

16

84131473

SHORT ENGINE

1шт.

17

86500689

NUT,M10 x 1.5, Cl 10

1шт.

18

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

19

86632602

LOCK WASHER,Ext Tooth, M10

1шт.

20

87016609

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

21

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

3шт.

22

87407206

GROUND STRAP

1шт.

23

87422777

ALTERNATOR,12V, 90A, W/ Pulley

1шт.

23

87422777R

REMAN-ALTERNATOR

12V, 90A

1шт.

23

87422777C

CORE-ALTERNATOR

Return Number

1шт.

24

87432921

ENGINE MOUNT

Front

1шт.

25

87452257

SPACER

Alternator

1шт.

26

87564117

V-BELT,27.92 mm W x 1778.00 mm L, 8 Ribs

1шт.

27

87652888

BOLT,Hex, M16 x 100mm, Cl 10.9

1шт.

28

87654558

ENGINE MOUNT

RH Rear

1шт.

29

87654559

ENGINE MOUNT

LH Rear

1шт.

30

87674774

HOSE

Upper Radiator

1шт.

31

87678223

WIRE

Starter to Alternator

1шт.

32

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

33

A171690

BOLT

4шт.

34

L126713

BOOT

2шт.

35

R49482

RUBBER MOUNTING

6шт.
