(90.160.08) - CANOPY HEADLINER FIELD KIT

Запчасти Case 650L (90.160.08) - CANOPY HEADLINER FIELD KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

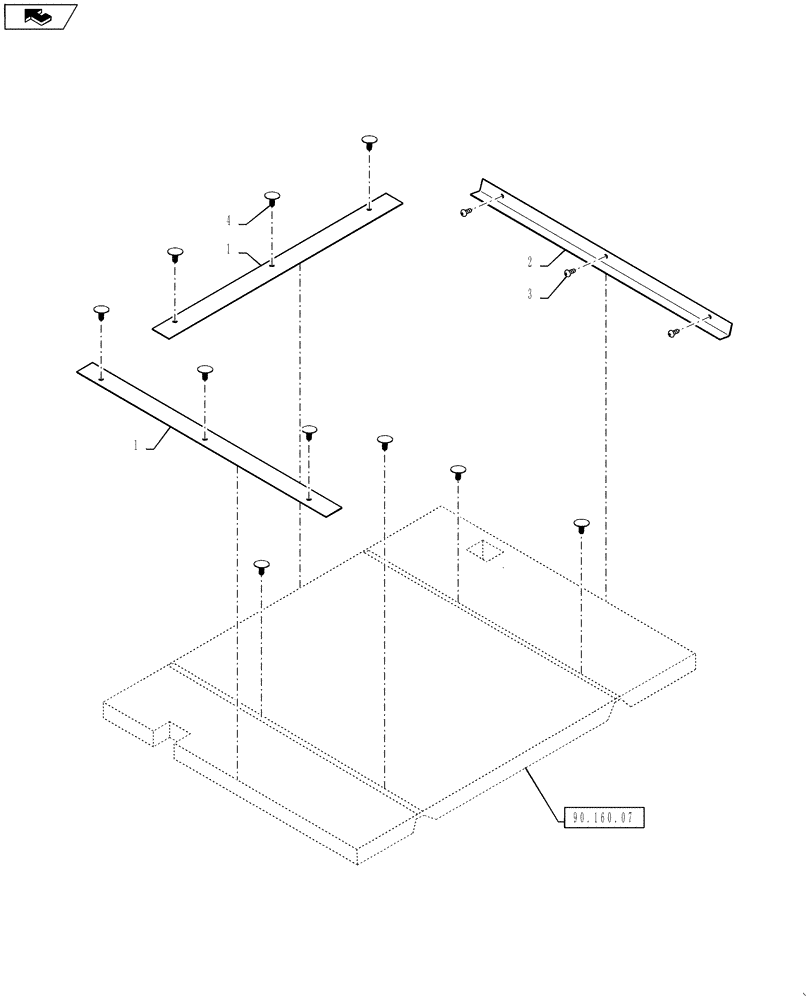

Схема запчастей Case 650L - (90.160.08) - CANOPY HEADLINER FIELD KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
3
1
home
2
90.160.07
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84539700

KIT

KIT; Canopy Headliner Field Kit; Includes Ref. 1 - 4

1шт.

1

84526660

PLATE

2шт.

2

84539738

ANGLE

1шт.

3

87597956

SELF-TAP SCREW,Pan Cross Recess Phillips, M6.3 x 1.8 x 22mm

3шт.

4

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

10шт.
