(90.160.07) - CANOPY, ROPS - HEADLINER AND MIRROR, REAR VIEW

Запчасти Case 650L (90.160.07) - CANOPY, ROPS - HEADLINER AND MIRROR, REAR VIEW (90) - PLATFORM, CAB, BODYWORK AND DECALS

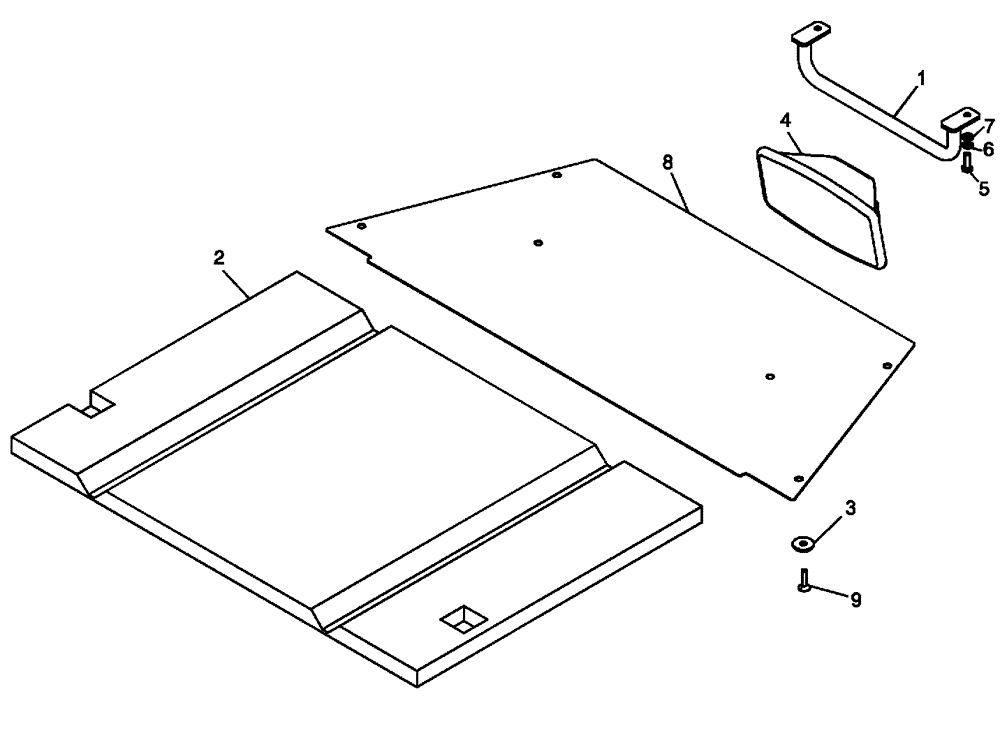

Схема запчастей Case 650L - (90.160.07) - CANOPY, ROPS - HEADLINER AND MIRROR, REAR VIEW (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
6
9
8
7
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87444309

BRACKET

Mirror Support

1шт.

2

87653963

PAD

Rear ROPS Headliner

1шт.

3

79076208

WASHER

6шт.

4

76067706

REAR VIEW MIRROR

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

892-11008

LOCK WASHER,8mm ID

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

87626685

FRONT PLATE

Headliner

1шт.

9

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

6шт.
