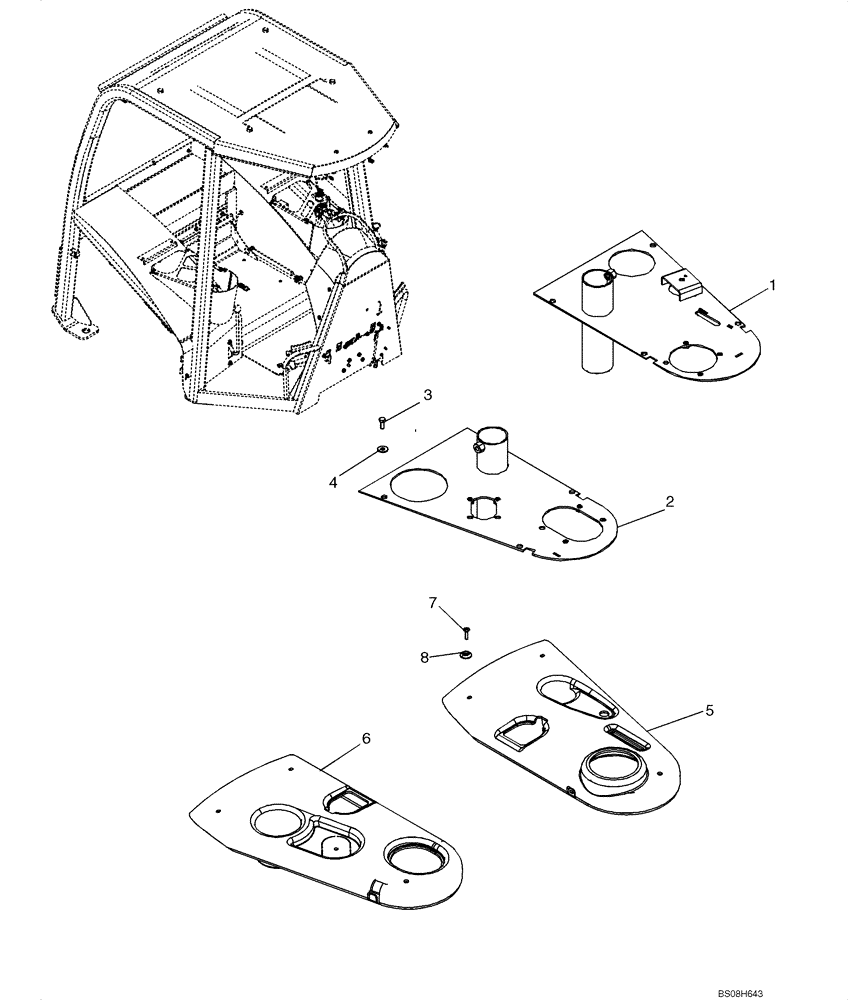

Запчасти Case 650L (90.160.06) - CANOPY, ROPS - CONSOLES, SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87639867

CONSOLE

Left Hand Side

1шт.

2

87639866

CONSOLE

Right Hand Side

1шт.

3

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

5

87604361

PAD

Console, Left Hand

1шт.

6

87604360

PAD

Console, Right Hand

1шт.

7

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

8шт.

8

87475892

CUP WASHER

8шт.
