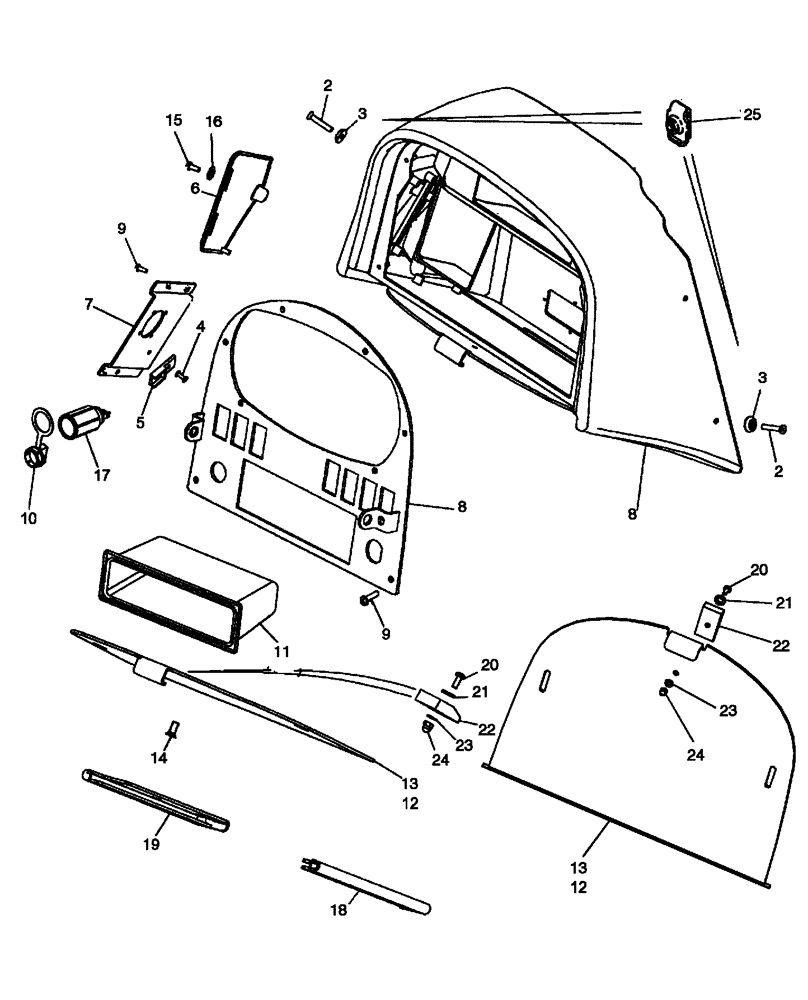

Запчасти Case 650L (90.160.05) - CONSOLE, FRONT - CANOPY, ROPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87565979

CONSOLE

Front, Canopy Models

1шт.

2

843-1650

SCREW,Flat , M6 x 50mm, Cl 4.8

4шт.

3

79076208

WASHER

Nylon

4шт.

4

86837478

RIVET,Pop, 1/8" x .650"

5шт.

5

381420A1

TOOL

Clip, Attachment

1шт.

6

86984895

PROTECTIVE COVER

Outer

1шт.

7

87664070

MOUNTING PLATE

PLATE, Diagnostic Mount

1шт.

8

87664065

CONSOLE

Front Console

1шт.

9

540-712

SCREW,Cross Pan Hd, M5 x 12

8шт.

10

283781A1

CAP,Polyester Elastomer

For Outlet

1шт.

11

4417913

CONTAINER

Storage

1шт.

12

87426769

BUSHING

Lockup Door

2шт.

13

87423753

DOOR

Lockup

1шт.

14

843-1512

SCREW,Flat , M5 x 12mm, Cl 4.8

6шт.

15

540-712

SCREW,Cross Pan Hd, M5 x 12

1шт.

16

87428441

RETAINER

Push On, M5

1шт.

17

283779A1

POWER SOCKET,12V

1шт.

18

87423749

GUIDE

Lock Up Door; Right Hand

1шт.

19

87423748

GUIDE

Lock Up Door; Left Hand

1шт.

20

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

87423750

BUMPER

Rubber

1шт.

23

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

24

87423751

CROWN NUT

M4

1шт.

25

76047274

NUT,M6 x 1

Fastener; If Used

4шт.
