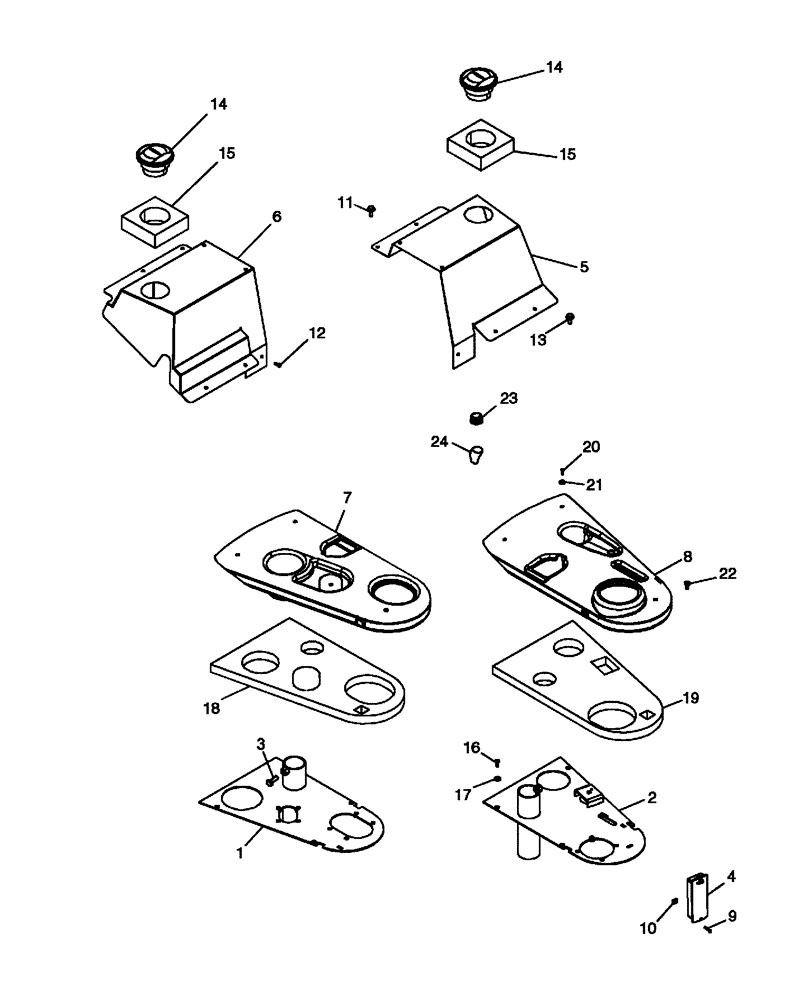

Запчасти Case 650L (90.160.02) - CAB - CONSOLES, SIDE AND REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87639866

CONSOLE

Right Hand

1шт.

2

87639867

CONSOLE

Left Hand

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

4

87691835

LOUVER

2шт.

5

87751996

COVER

Left-Hand Rear HVAC

1шт.

6

87751997

COVER

Right-Hand Rear HVAC

1шт.

7

87604360

PAD

Console, Right Hand

1шт.

8

87604361

PAD

Console, Left Hand

1шт.

9

87551002

SCREW,M3.5 x 26.40mm

4шт.

10

125749A1

SPRING NUT

4шт.

11

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

12

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

13

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

14

82027900

DIFFUSER

Vent Round

2шт.

15

87615072

GASKET

Seal Top

2шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

17

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

18

84141579

FOAM INSULATION

Console Right Hand

1шт.

19

84141580

FOAM INSULATION

Console Left Hand

1шт.

20

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

8шт.

21

87475892

CUP WASHER

8шт.

22

A161780

BUMPER

3шт.

23

187820A1

KNOB

Draft Control

1шт.

24

116756A1

BUTTON

Knob Lever

1шт.
