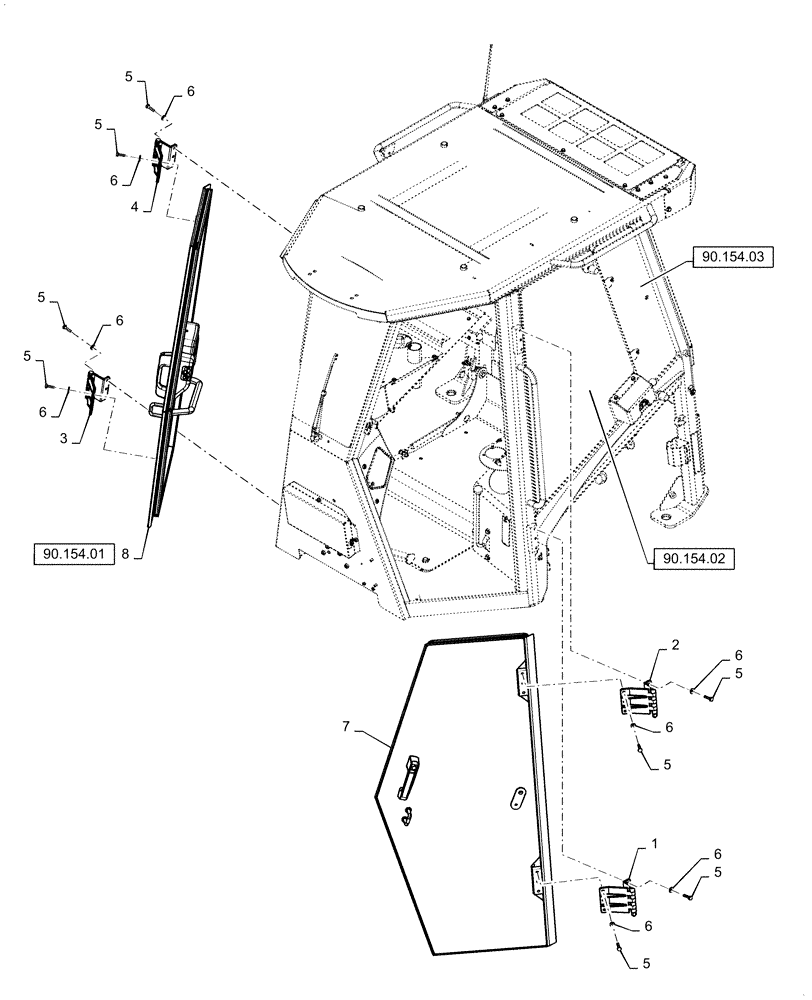

Запчасти Case 650L (90.154.04) - DOOR MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87751986

HINGE

LH Lower

1шт.

2

87751975

HINGE

LH Upper

1шт.

3

87751987

HINGE

RH Lower

1шт.

4

87751970

HINGE

RH Upper

1шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Hinge Mounting

24шт.

6

892-11008

LOCK WASHER,8mm ID

Hinge Mounting

24шт.

7

87721436

LH CAB DOOR

Assembly

1шт.

8

87721435

RH CAB DOOR

Assembly

1шт.
