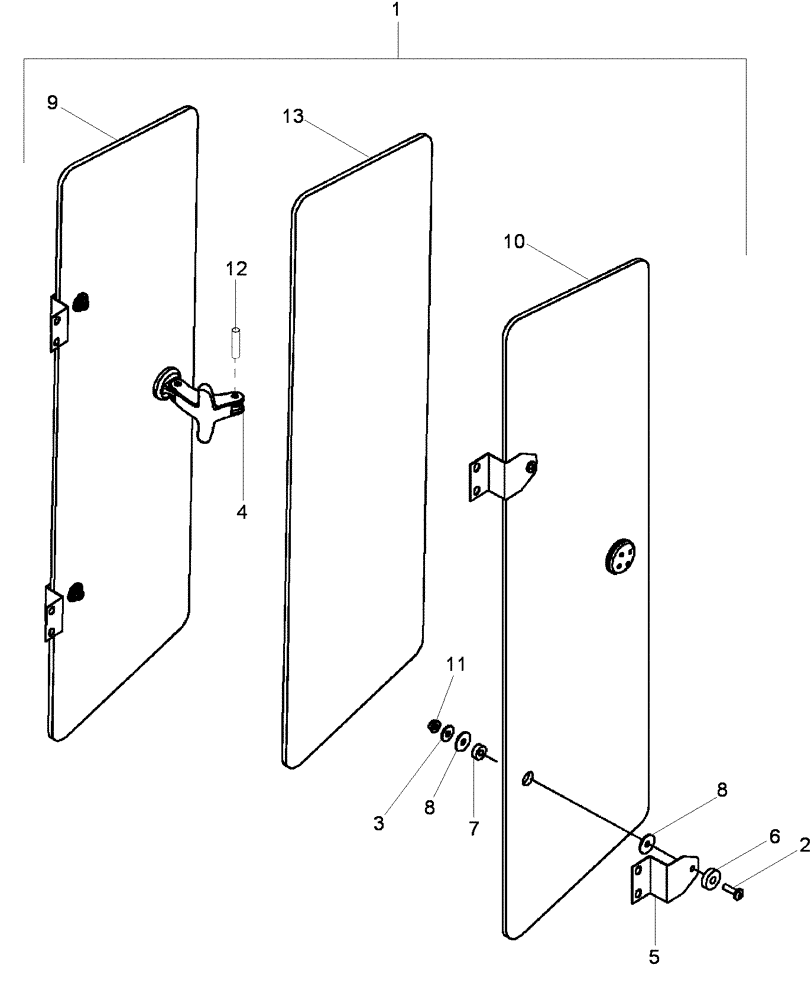

Запчасти Case 650L (90.154.03) - CAB - WINDOW VENTS - HARDWARE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84151473

GLASS,CAB

Vent Left Hand, Inc. 2 - 9,11

1шт.

1

84151472

GLASS,CAB

Vent Right Hand, Inc. 2 8,10,11

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

2шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

4

87397399

LATCH

Vent Window

1шт.

5

87397400

HINGE

Vent Window

2шт.

6

87517925

WASHER

2шт.

7

87517926

BUSHING

2шт.

8

87615099

WASHER

4шт.

9

87721465

GLASS,CAB

Window Vent, Right Hand

1шт.

10

87721466

GLASS,CAB

Window Vent, Left Hand

1шт.

11

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

12

20344

LOCK PIN,3/16" x 1/2", Slotted

2шт.

13

87751981

SEAL, GLASS

Window Vent

2шт.
