(90.150.05) - MOUNTING - FUEL TANK/HYDRAULIC RESERVOIR

Запчасти Case 650L (90.150.05) - MOUNTING - FUEL TANK/HYDRAULIC RESERVOIR (90) - PLATFORM, CAB, BODYWORK AND DECALS

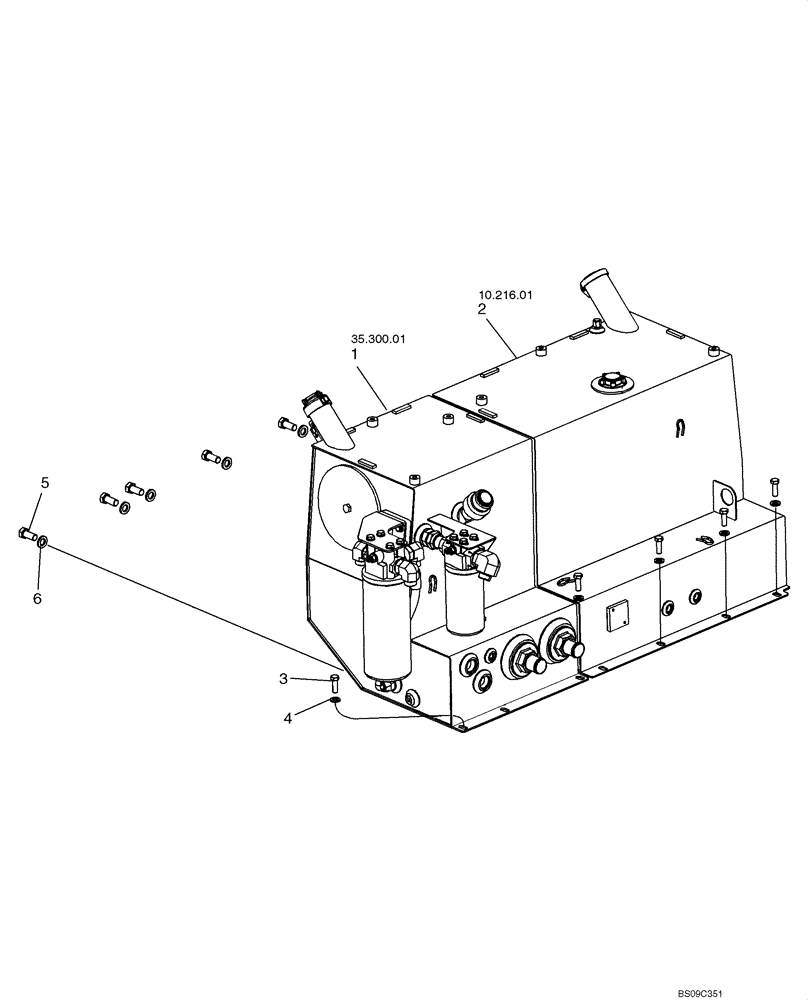

Схема запчастей Case 650L - (90.150.05) - MOUNTING - FUEL TANK/HYDRAULIC RESERVOIR (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
3
1
4
35.300.01
10.216.01
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87617545

TANK

Hydraulic

1шт.

2

87617546

TANK

Fuel

1шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

5шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

5

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

5шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

5шт.

Выбрано товаров: 6
