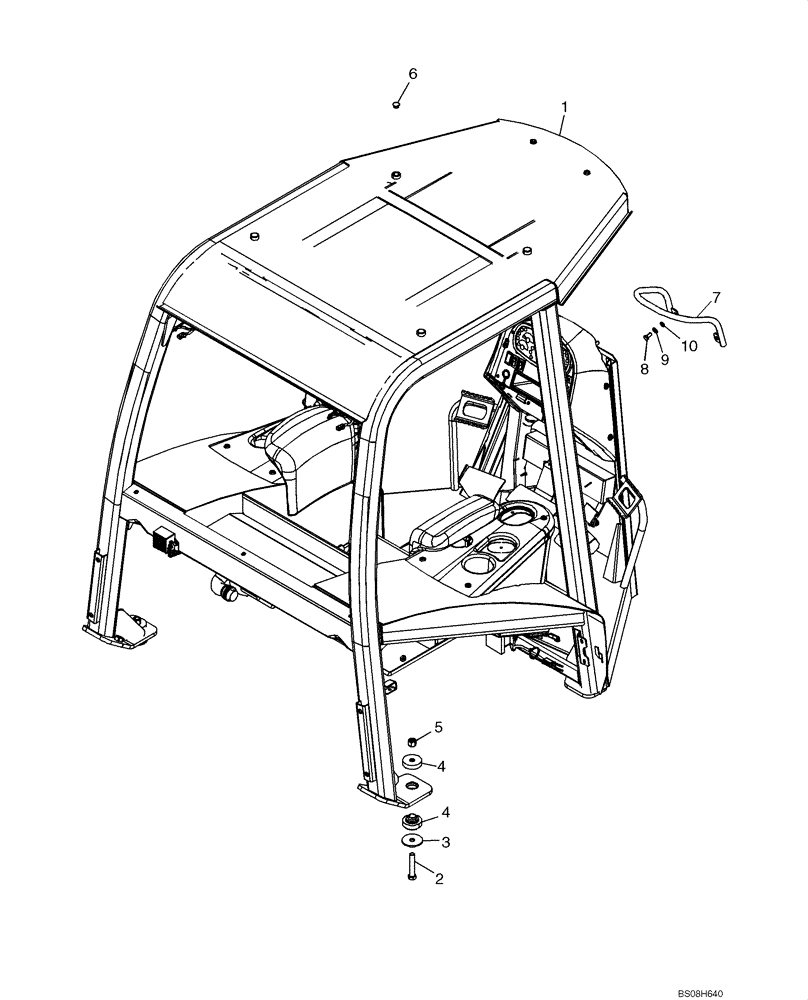

Запчасти Case 650L (90.150.04) - CANOPY, ROPS - FRAME, MOUNTING AND GRAB HANDLES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87604263

ROPS

Frame, Order From Machinery Price List

1шт.

2

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

3

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

8шт.

4

411892A1

RUBBER MOUNTING

4шт.

5

832-10416

NUT,M16 x 2, Cl 8

4шт.

6

353-429

PLUG

4шт.

7

448838A1

HANDLE

Grab, Front

1шт.

8

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
