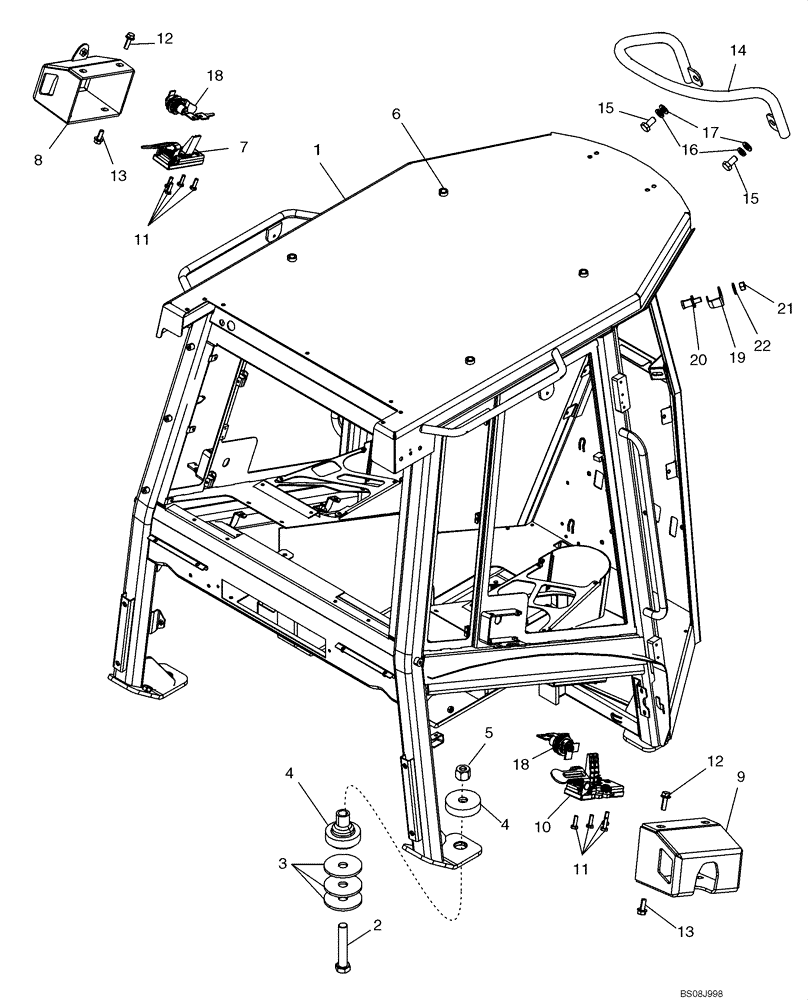

Запчасти Case 650L (90.150.03) - CAB - FRAME AND MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87721408

CAB

Inc. Frame, Doors, Glass, Consoles, Front Wiper; Order From Machinery Price List

1шт.

1

87721411

CAB FRAME

Order from Machinery Price List

1шт.

2

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

3

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

12шт.

4

411892A1

RUBBER MOUNTING

4шт.

5

832-10416

NUT,M16 x 2, Cl 8

4шт.

6

353-429

PLUG

4шт.

7

84150074

LATCH

Cab Door Left Hand

1шт.

8

84150073

COVER

Latch Left Hand

1шт.

9

84149972

COVER

Latch Right Hand

1шт.

10

84149751

LATCH

Cab Door Right Hand

1шт.

11

87342605

BOLT

8шт.

12

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

4шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

14

448838A1

HANDLE

Grab, Front

1шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

15шт.

18

87661394

LOCKING HANDLE

HANDLE

2шт.

19

87740412

GUARD

BRACKET, Striker Guard

2шт.

20

87551007

STRIKER

BOLT, STRIKER

2шт.

21

829-1412

NUT,M12, Cl 10.9

2шт.

22

895-15012

WASHER,M12 x 28 x 2.5

2шт.
