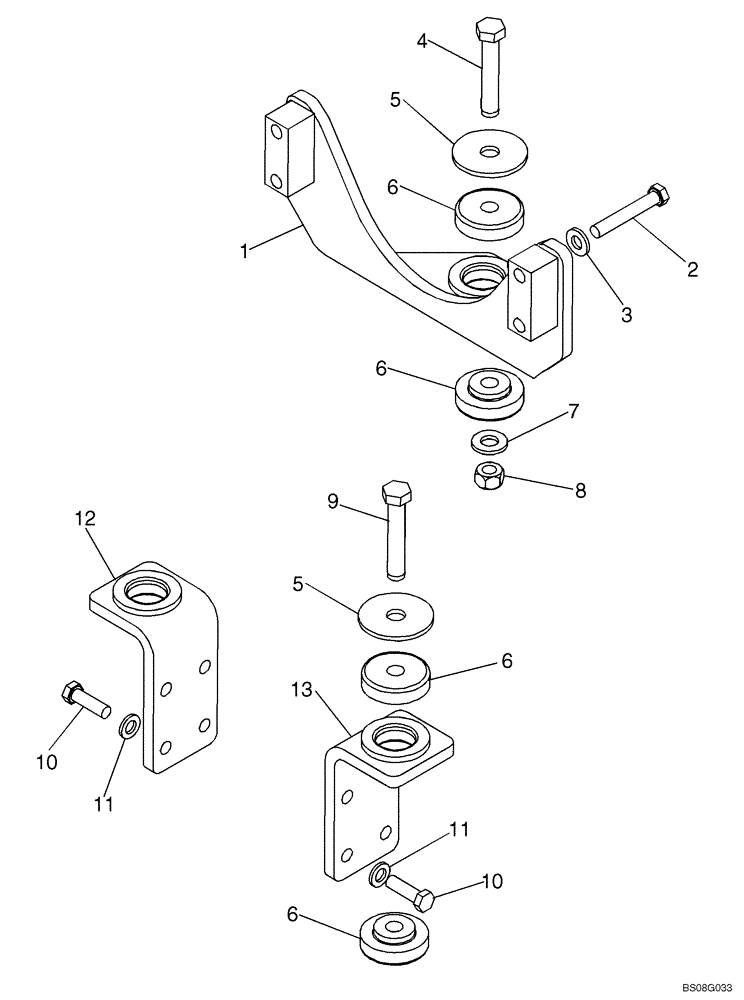

Запчасти Case 650L (90.150.01) - ENGINE - MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87432921

ENGINE MOUNT

Front

1шт.

2

A171690

BOLT

M10 x 85; 10.9

4шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

4

87652888

BOLT,Hex, M16 x 100mm, Cl 10.9

BOLT

1шт.

5

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

3шт.

6

R49482

RUBBER MOUNTING

6шт.

7

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

8

829-1416

NUT,M16, Cl 10

1шт.

9

608-16065

BOLT,M16 x 65mm, Cl 10.9

Locking

2шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

12

87654559

ENGINE MOUNT

Rear, Right Hand

1шт.

13

87654558

ENGINE MOUNT

Rear, Left Hand

1шт.
