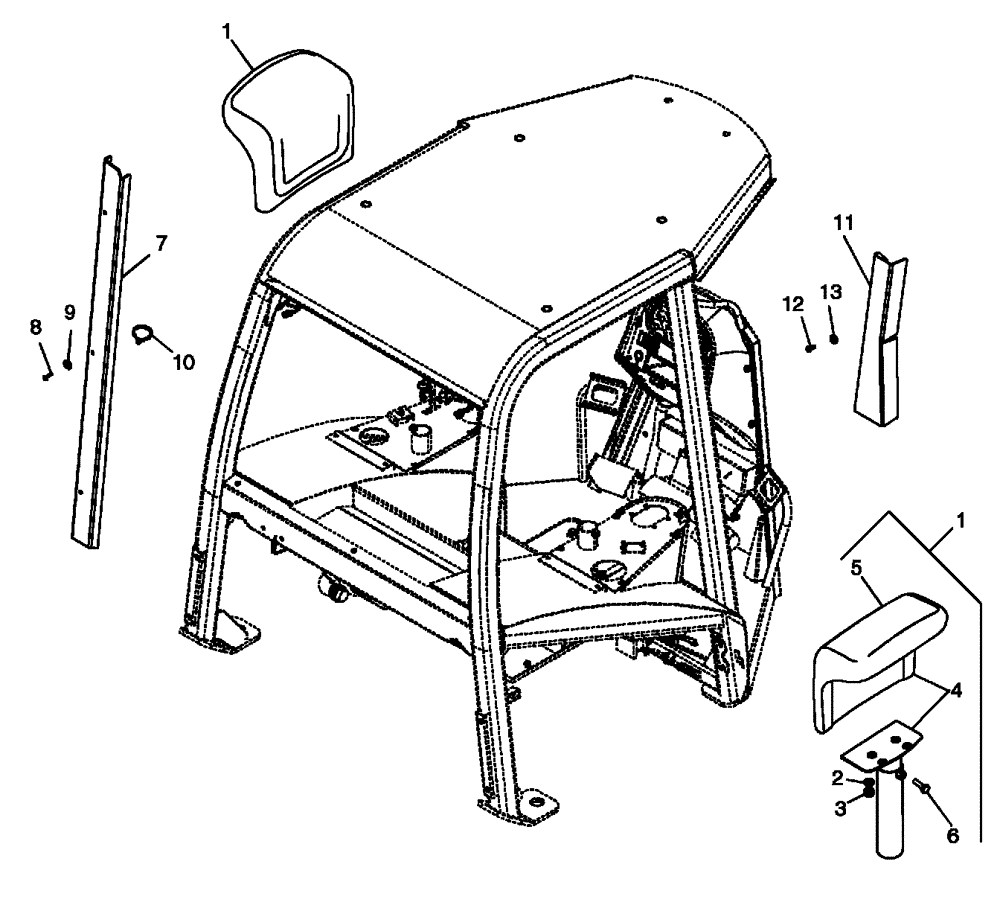

Запчасти Case 650L (90.120.06) - CANOPY, ROPS - ARMRESTS AND HARNESS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86989674

ARMREST ASSY.

Includes 2 - 5

2шт.

2

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

4

86988140

SUPPORT TUBE

1шт.

5

87410160

ARMREST

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

7

87499831

CHANNEL

Harness; ROPS Post

1шт.

8

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

3шт.

9

79076208

WASHER

Nylon

3шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

10шт.

11

87656710

COVER

Harness

1шт.

12

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

13

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.
