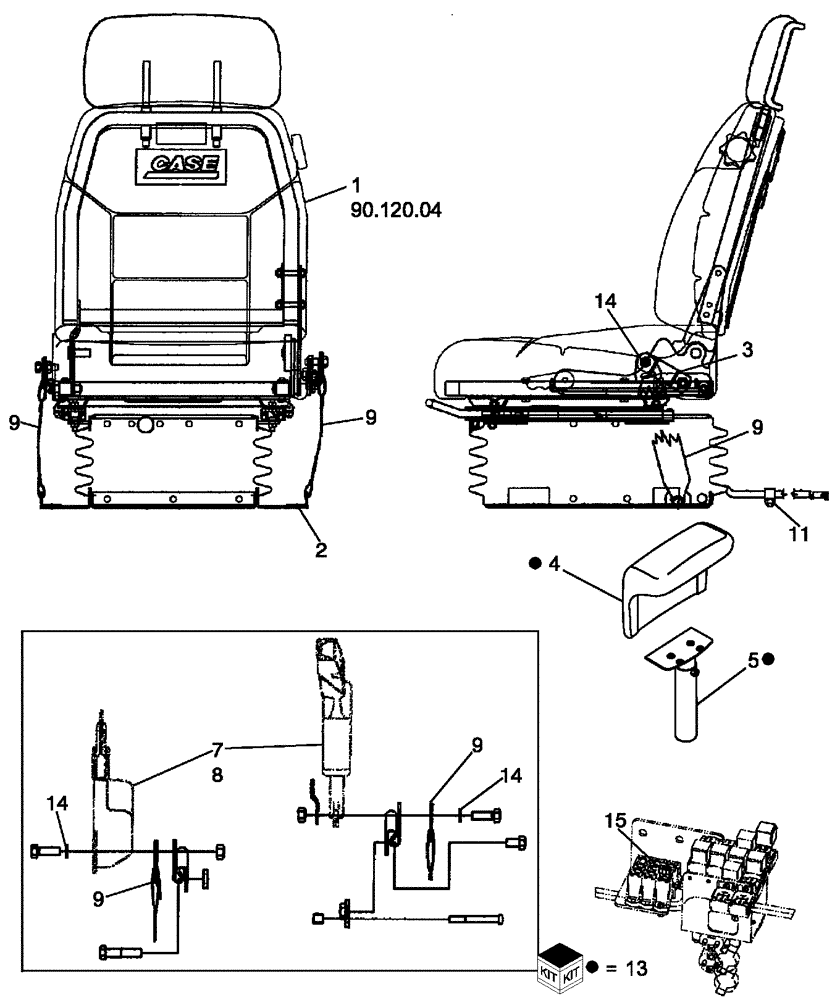

Запчасти Case 650L (90.120.05) - SEAT ASSY, AIR SUSPENSION - MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

446396A2

SEAT ASSY.

Air Suspension; Vinyl

1шт.

1

429469A2

SEAT ASSY.

Air Suspension; Cloth

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

Replaces 854-10025 M10 x 25, 10.9

4шт.

3

D150393

BRACKET

1шт.

4

87410160

ARMREST

1шт.

5

86988140

SUPPORT TUBE

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

(Not Shown)

4шт.

7

87408888

SAFETY BELT ,76.20 mm W

Mounting Hardware Supplied with Seat Assy

1шт.

8

87408889

SAFETY BELT ,50.80 mm W

1шт.

9

NSS

NOT SOLD SEPARAT

Tether; Inc. With 7, 8

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

(Not Shown)

4шт.

11

49836

CLAMP

1шт.

12

87436836

RELAY,12V, 40 Amp

40 amp, 12 V, Heavy Duty; Used With 1

1шт.

13

86989674

ARMREST ASSY.

Kit, Inc. 6,10

2шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

15

A149804

FUSE

30 ampere; Light Green

1шт.
