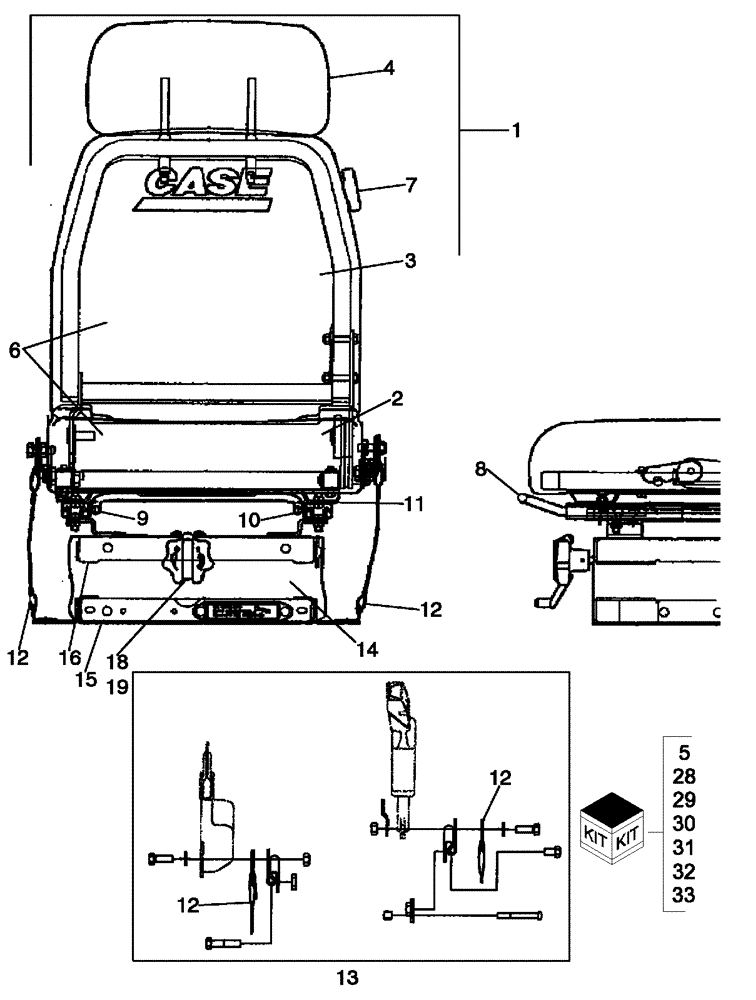

Запчасти Case 650L (90.120.02) - SEAT ASSY, MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

429468A2

SEAT ASSY.

Mechanical Suspension; Vinyl; Incl. Ref 1 - 19, Except Where Cloth Is Noted

1шт.

1

429468A2

SEAT ASSY.

Mechanical Suspension; Vinyl; Inc. 1 - 19, Except Where Cloth Is Noted

1шт.

1

87451469

SEAT ASSY.

Mechanical Suspension; Cloth; Inc. 1 - 19, Except Where Vinyl Is Noted

1шт.

2

86990105

SEAT ACCESSORY

Cushion, Vinyl

1шт.

2

86990125

SEAT ACCESSORY

Cushion, Cloth

1шт.

3

86990106

SEAT ACCESSORY

Backrest Cushion; Vinyl

1шт.

3

86990126

SEAT ACCESSORY

Backrest Cushion; Cloth

1шт.

4

86990107

SEAT ACCESSORY

Backrest, Upper; Vinyl

1шт.

4

86990127

SEAT ACCESSORY

Backrest, Upper; Cloth

1шт.

5

176091A1

PACKAGE,SERVICE

Kit, Hog Ring; Cushion Retainer; Package Of 50

1шт.

6

86990104

SEAT ACCESSORY

Seat; Vinyl; Includes Seat and Backrest Cushion

1шт.

6

86990124

SEAT ACCESSORY

Seat; Cloth; Includes Seat and Backrest Cushion

1шт.

7

1987212C1

PACKAGE

Kit, BackTilt Knob; Includes Knob, Handle, Screw

1шт.

8

86990108

SEAT ACCESSORY

Lever, Slide Release

1шт.

9

86990111

SEAT ACCESSORY

Slide; 6 in. Travel

1шт.

10

86990112

SEAT ACCESSORY

Slide; 6 in. Travel

1шт.

11

182991A1

LARGE PLATE

PLATE, LARGE Adapter

1шт.

12

86990113

BELT

Tether

2шт.

13

389085A1

KIT

Seat Belt Mounting; Includes (2) Brackets, (3) Spacers, (1) Plate, (6) Bolts, (2) Nuts

1шт.

14

86990114

SEAT ACCESSORY

Suspension Assembly; Boxed

1шт.

15

389273A1

HOUSING

Lower; Boxed

1шт.

16

86990116

SEAT ACCESSORY

Housing; Upper; Boxed

1шт.

17

389086A1

KIT

Boot; Includes (1) Boot, (25) Clips, (1) Decal

1шт.

18

123969A1

SEAT ACCESSORY

Kit, Weight Adjustment; Incl (1) Knob, (1) Shaft, (1) Roll Pin

1шт.

19

38-31016

PIN,5/32" x 1", Coiled

1шт.

20

86990117

SEAT ACCESSORY

Arm, Suspension (Not Shown)

1шт.

21

112884A1

SHAFT,368mm L

Bearing (Not Shown)

1шт.

22

A45054

BUMPER,Neoprene

Black Rubber (Not Shown)

2шт.

23

51200906

BRACKET

Shaft; Suspension (Not Shown)

1шт.

24

A45504

SPRING WASHER

Spring Washer; Square, With Weldnut (Not Shown)

1шт.

25

A45505

GEAR

Gear and Shaft (Not Shown)

1шт.

26

A47386

WASHER

(Not Shown)

1шт.

27

A45513

GEAR

(Not Shown)

1шт.

28

87405470

SEAT ACCESSORY

Kit, Cover, Back; Vinyl; Includes Manual Holder

1шт.

29

1981820C2

PACKAGE, REPAIR

Kit, Cover,Back; Cloth; Includes Manual Holder

1шт.

30

1977725C1

SLIDER

Kit, Slider Block; Includes (4) Slider Blocks, (4) Bearings, (1) Ride Indicator

1шт.

31

389284A1

KIT

Spring; Suspension

1шт.

32

389276A1

KIT

Shock Absorber; Includes (1) Shock, (2) Bearings

2шт.

33

64918C1

SHOCK ABSORBER

Kit, Shock Absorber; Includes (1) Shock, (2) Bearings, (1) Bolt, (1) 231-4206 Nut, (1) 131-1100 Nut, (2) Spacers

1шт.
