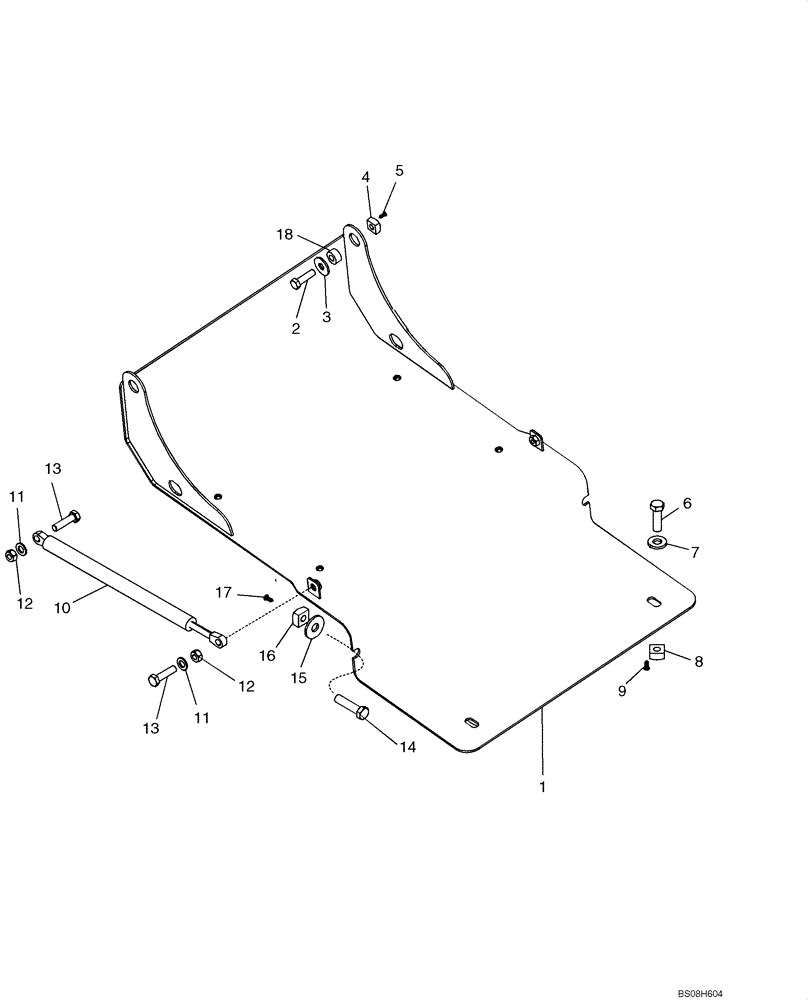

Запчасти Case 650L (90.120.01) - CAB OR CANOPY- PLATE, SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87604353

RETAINING PLATE

With Seat; Use Foam Seal 87302034 To Seal Around The Plate

1шт.

2

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

3

895-25012

WASHER,M12 x 37 x 3

2шт.

4

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

2шт.

5

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

6

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

8

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

Cage

2шт.

9

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

10

247992A2

GAS STRUT,610mm Extended, 380mm Compressed

Plate Seat

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

13

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

14

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

2шт.

15

895-25012

WASHER,M12 x 37 x 3

2шт.

16

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

Cage

2шт.

17

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

18

84160827

SPACER

BOSS, Seat Pivot

2шт.
