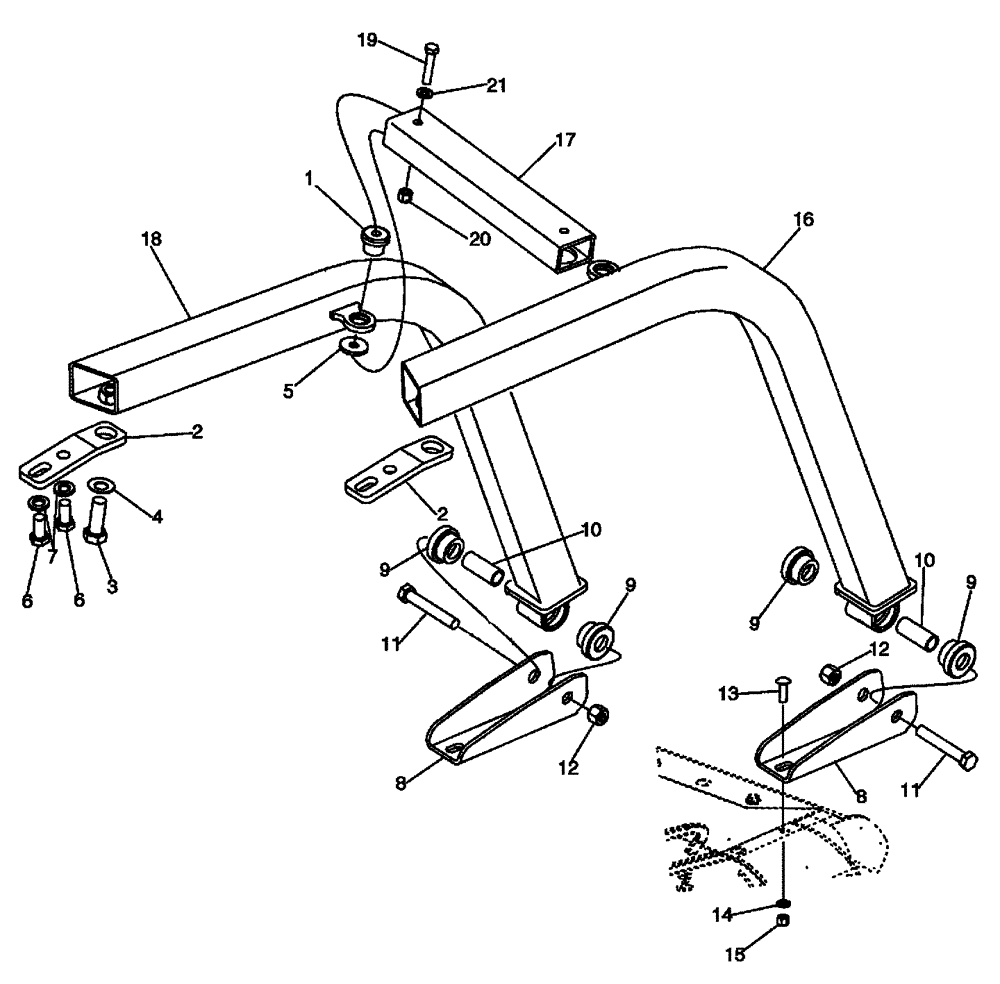

Запчасти Case 650L (90.118.03) - CANOPY, ROPS - GUARD, BRUSH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

R29799

SHOCK ABSORBER

Isolator

2шт.

2

436119A4

MOUNTING PLATE

2шт.

3

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

2шт.

4

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

2шт.

5

D25022

WASHER

Pin Link Pocket

2шт.

6

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

84149884

CHANNEL

2шт.

9

R40721

GROMMET

Insulator

4шт.

10

R40954

BUSHING

2шт.

11

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

12

832-10416

NUT,M16 x 2, Cl 8

2шт.

13

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

87702232

GUARD

Brush, Right Hand

1шт.

17

87702236

TUBE,381.2 mm L

Brush Guard, Cross

1шт.

18

87702233

GUARD

Brush, Left Hand

1шт.

19

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

21

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.
