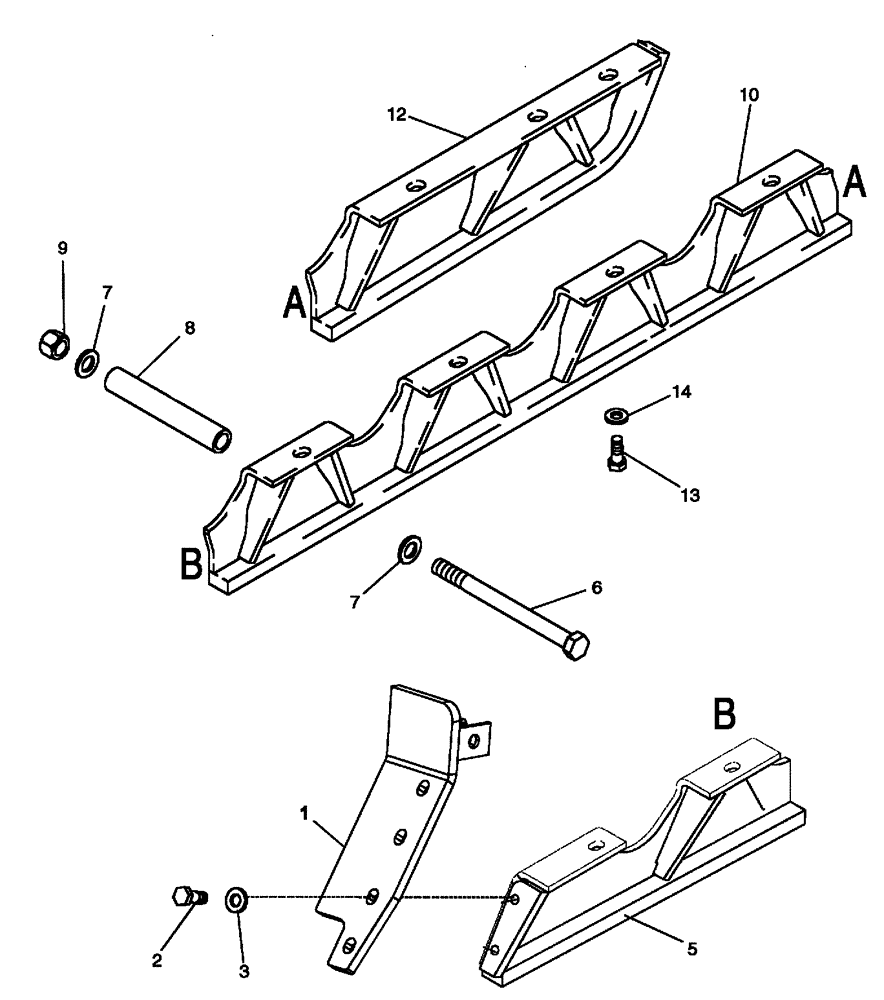

Запчасти Case 650L (90.116.04) - TRACK GUARDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87631135

GUARD

Sprocket, Right Hand

2шт.

1

87631130

GUARD

Sprocket, Left Hand (Not Shown)

2шт.

2

87018374

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

8шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

4

87634811

GUIDE

Rear, Left Hand (Not Shown)

2шт.

5

87634812

GUIDE

Rear, Right Hand

2шт.

6

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

8шт.

7

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

16шт.

8

141188A1

SPACER

8шт.

9

231-41112

LOCK NUT,3/4"-10, GB

8шт.

10

87650049

GUARD

Center

4шт.

11

87634809

GUARD

Front, Left Hand (Not Shown)

2шт.

12

87634810

GUARD

Front, Right Hand

2шт.

13

87018374

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

36шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

36шт.
