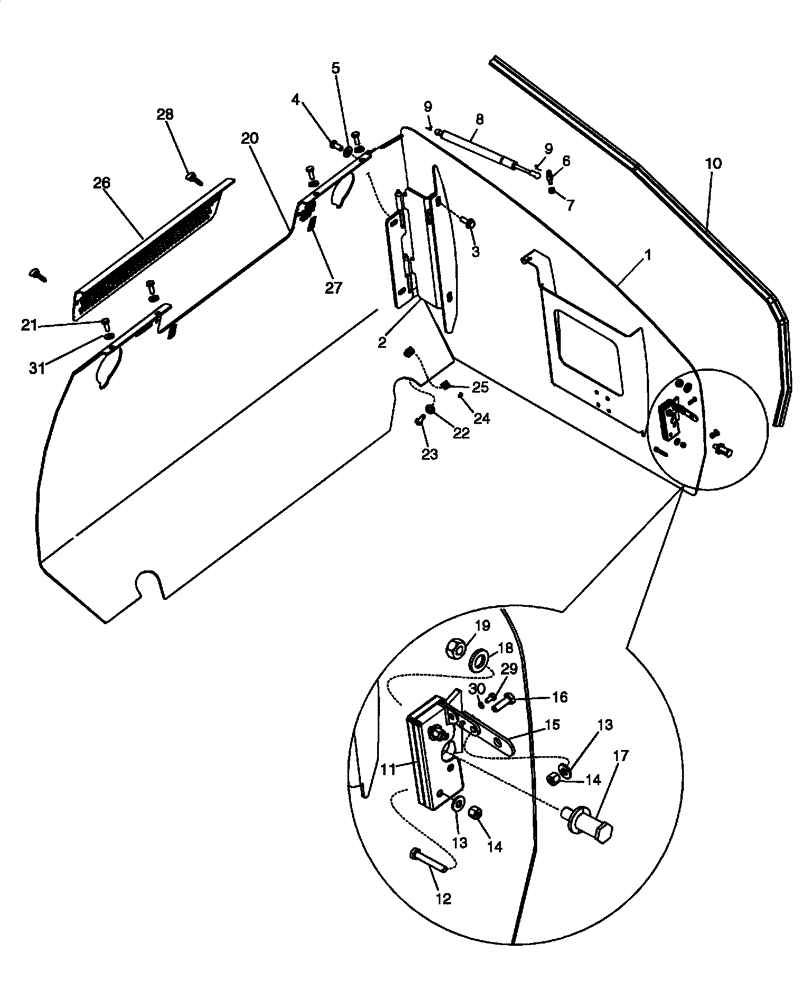

Запчасти Case 650L (90.116.02) - DOORS, REAR COVER - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84176674

DOOR

Door Left Hand

1шт.

1

84176477

DOOR

Door Right Hand (Not Shown)

1шт.

2

84200044

HINGE

HINGE, Door Left Hand

1шт.

2

84201864

HINGE

HINGE, Door Right Hand (Not Shown)

1шт.

3

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

4шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

6

109498A1

STUD

Ball

4шт.

7

231-1445

NUT,5/16"-18, GB

4шт.

8

339361A1

SPRING

Gas

2шт.

9

F44883

CLIP,DIN 71805 - S10

Door Gas Spring

4шт.

10

87757026

DOOR SEAL

2шт.

11

R55003

LATCH ASSY.

Door

2шт.

12

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

4шт.

13

495-11028

WASHER,1/4", SAE

12шт.

14

832-10406

NUT,M6 x 1, Cl 8

6шт.

15

84157792

LATCH

Release

2шт.

16

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

17

328534A1

BOLT

Striker

2шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

19

425-107

NUT,7/16"-14, G5

2шт.

20

84163658

COVER

Plate, Rear

1шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

22

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

24

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

25

122958A1

SQUARE NUT

2шт.

26

87757021

COVER

Filter Access

1шт.

27

87551005

SEALING WASHER

2шт.

28

87551004

THUMB SCREW,M8 x 48.10mm

2шт.

29

779-34395

SELF-TAP SCREW,Hex Hd, M4.8 x 9.5

2шт.

30

893-11004

LOCK WASHER,Ext Tooth, M4

2шт.

31

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.
