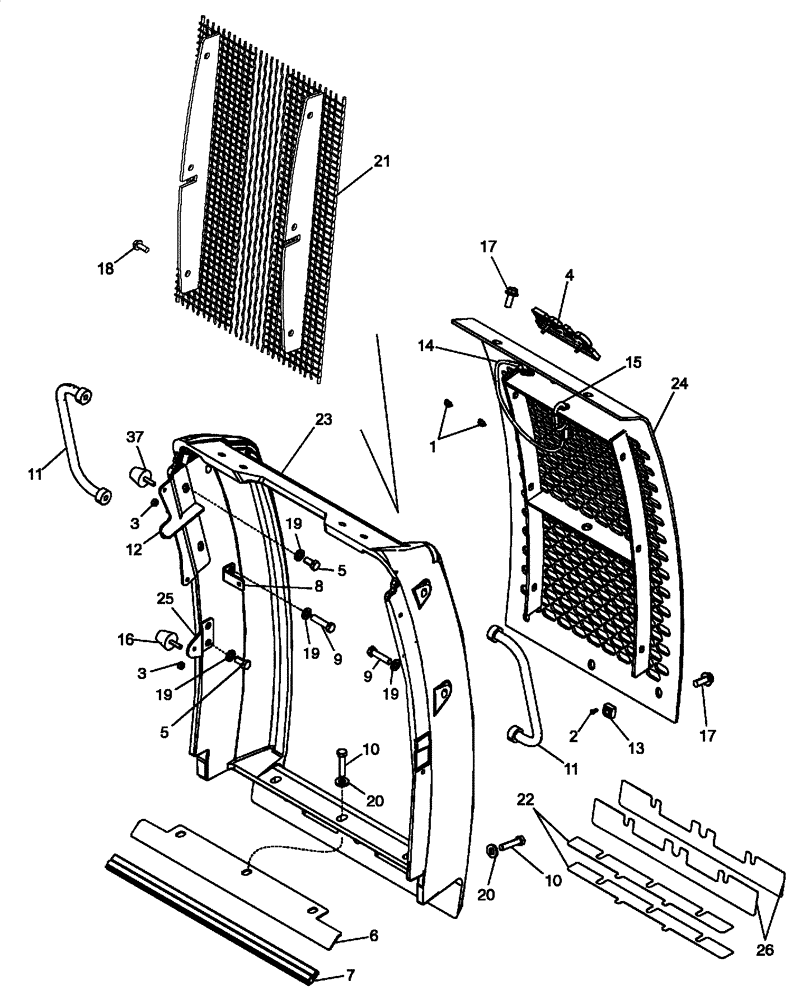

Запчасти Case 650L (90.114.01) - GUARD, RADIATOR BRUSH SCREEN - GRILL, HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

2

336371A1

PIN,4.88mm OD x 14.23mm L

3шт.

3

425-115

NUT,5/16"-24, G5

3шт.

4

186989A1

EMBLEM

CASE, Front Grill

1шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

6

87726711

PLATE

Radiator Seal

1шт.

7

87726704

SEAL

Bulb Radiator

1шт.

8

87704837

BRACKET

Horn

1шт.

9

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

10

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

5шт.

11

87697497

HANDLE

Front

2шт.

12

87680602

PLATE

1шт.

13

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

3шт.

14

87419297

CABLE

Grill Retaining

1шт.

15

87419250

CONNECTING LINK

1шт.

16

87330642

BUMPER

3шт.

17

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

5шт.

18

87015905

BOLT,Hex, M10 x 25mm, Cl 10.9, Full Thd

6шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

5шт.

21

84156873

SCREEN

Radiator Brush

1шт.

22

84152137

BRACKET

Shim, Front Grill

2шт.

23

84138994

FRAME

GRILL

1шт.

24

84136641

GRILLE

Front

1шт.

25

84136274

BRACKET

Bumper Mount

1шт.

26

84191928

SHIM

Front Grill

2шт.
