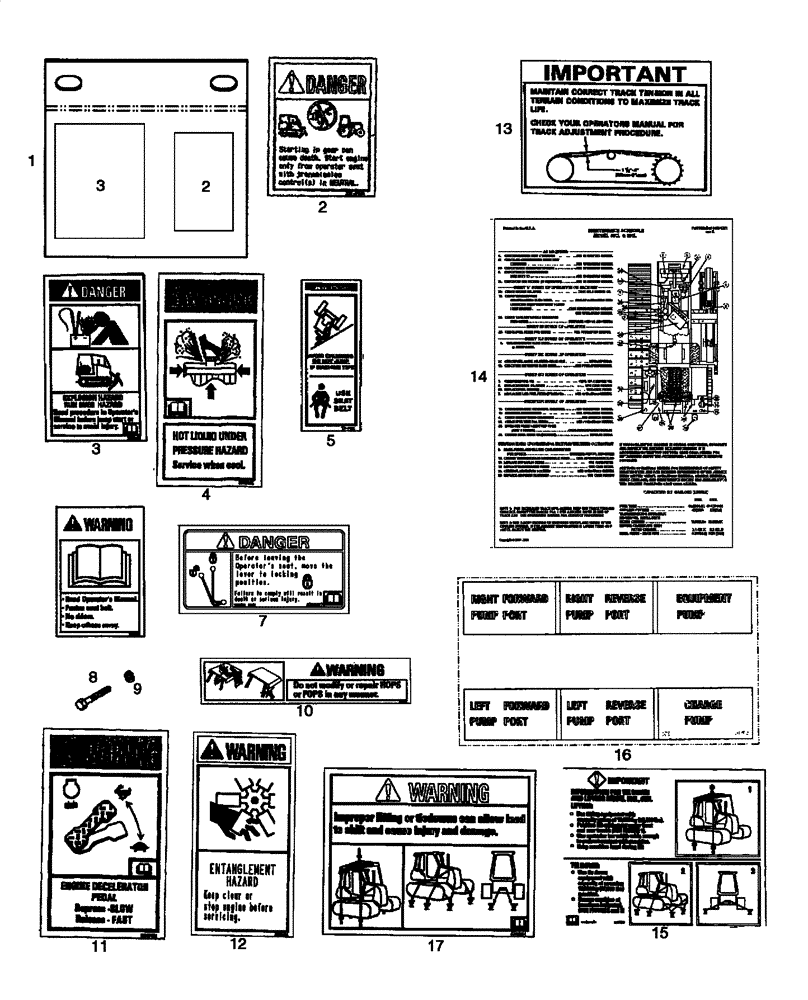

Запчасти Case 650L (90.108.03[02]) - DECALS - CANADIAN FRENCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87747993

MOUNTING PLATE

Decal Mounting; Use With 2, 3, 8, 9

1шт.

2

124279A1

DECAL

Warning Engine Start

1шт.

3

389737A1

DECAL

Danger; Jump Start, Battery

2шт.

4

389742A1

DECAL

Warning; Radiator Cap

1шт.

5

124269A1

DECAL

Warning; Do Not Jump

1шт.

6

87352601

DECAL

Warning; Read the Operator's Manual

1шт.

7

87634108

DECAL

Safety Lever

2шт.

8

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

9

893-11012

LOCK WASHER,Ext Tooth, M12

2шт.

10

87454611

DECAL

Warning ROPS

1шт.

11

87453591

DECAL

Warning - Deceleration

1шт.

12

334033A1

DECAL

Fan Hazard

1шт.

13

389785A1

DECAL

Important; Track Tension

1шт.

14

84191213

DECAL

Maintenance

1шт.

15

84121480

DECAL

DECAL, Lift And Tie Down Instructions

1шт.

16

87421176

DECAL

Diagnostics

1шт.

17

87416964

DECAL,110mm x 85mm H

Lift And Tie Down Warning

1шт.
