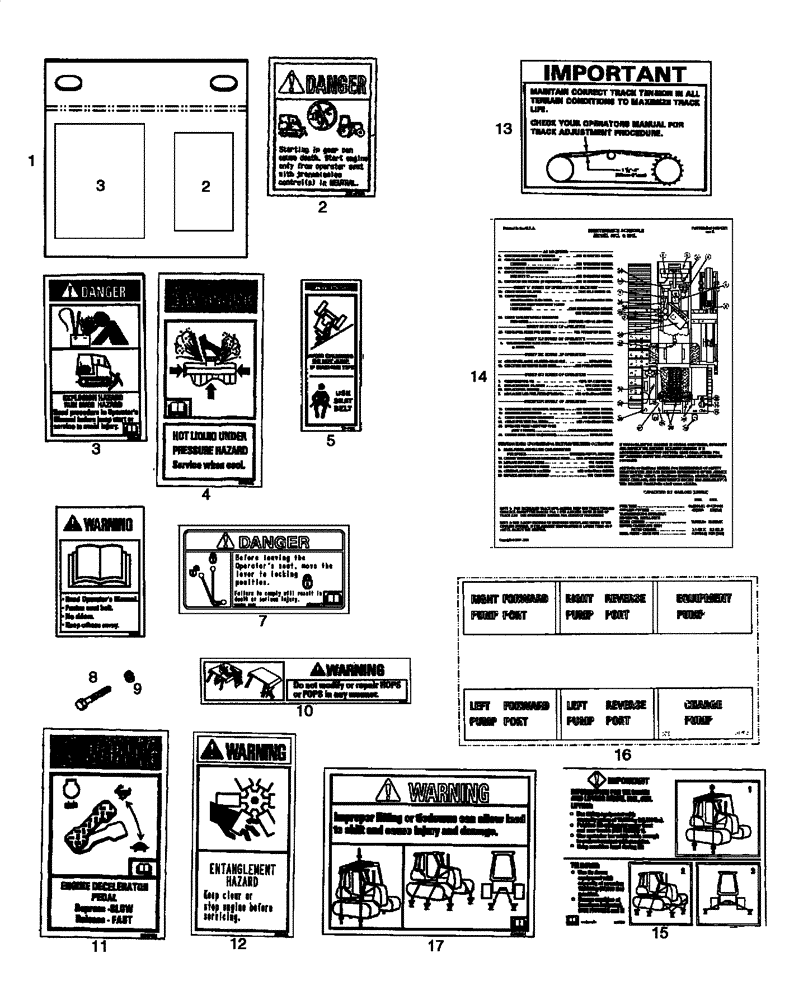

Запчасти Case 650L (90.108.03[01]) - DECALS - ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87747993

MOUNTING PLATE

Decal Mounting; Use With 2, 3, 8, 9

1шт.

2

321-7040

DANGER DECAL

Warning Engine Start

1шт.

3

383973A1

DECAL,60mm x 100mm H

Danger; Jump Start, Battery

2шт.

4

384258A1

DANGER DECAL

Warning; Radiator Cap

1шт.

5

321-7030

WARNING DECAL

Do Not Jump

1шт.

6

382622A1

DECAL,60mm x 90mm H

Warning; Read the Operator's Manual

1шт.

7

87634107

DECAL

Safety Lever

2шт.

8

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

9

893-11012

LOCK WASHER,Ext Tooth, M12

2шт.

10

383972A1

WARNING DECAL,195mm x 37mm H

ROPS

1шт.

11

383971A1

DECAL

Warning - Deceleration

1шт.

12

332512A1

DECAL

Fan Hazard

1шт.

13

R57776

DECAL

Important; Track Tension

1шт.

14

84191211

DECAL

Maintenance

1шт.

15

84121480

DECAL

Lift And Tie Down Instructions

1шт.

16

87435632

DECAL

Diagnostics

1шт.

17

87416964

DECAL,110mm x 85mm H

Lift And Tie Down Warning

1шт.
