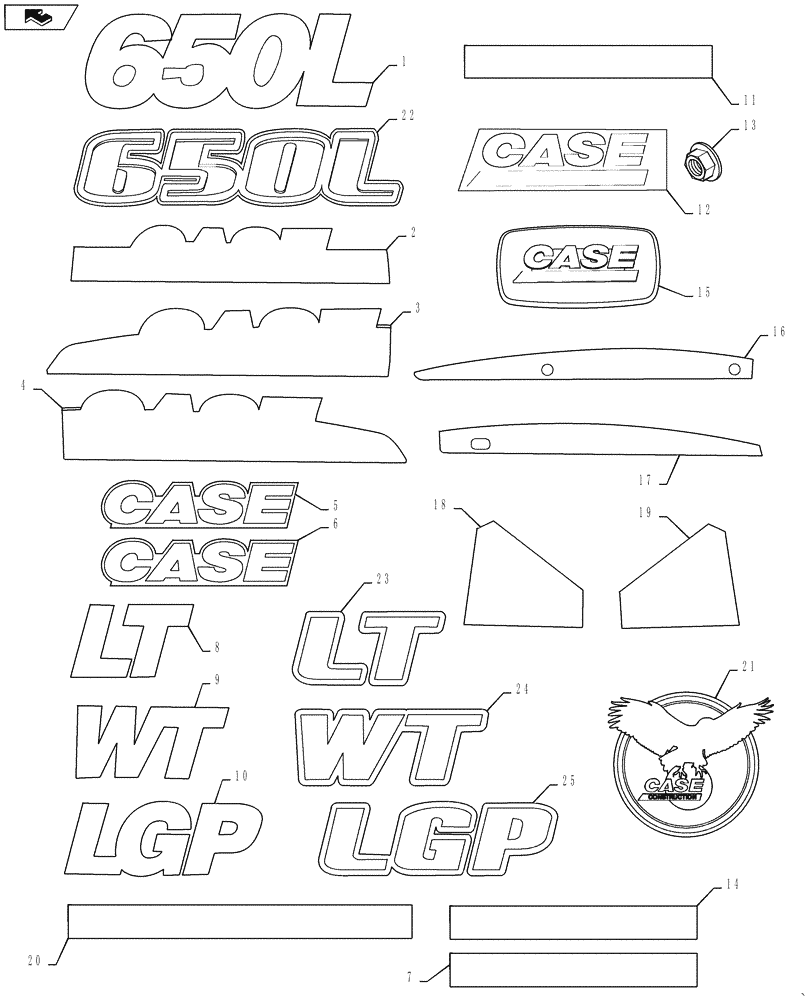

Запчасти Case 650L (90.108.01) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87747645

DECAL

Model, 650L, Serial Range: -NBDC60079

2шт.

2

87747643

DECAL

Case, Rear, Serial Range: -NBDC60079

1шт.

3

87747640

DECAL

Case, Left Rear, Serial Range: -NBDC60079

1шт.

4

87747641

DECAL

Case, Right Rear, Serial Range: -NBDC60079

1шт.

5

87408281

DECAL

Case; 786 x 182 mm; Rear Side, Serial Range: -NBDC60079

2шт.

6

87593018

DECAL

Case; 972 x 225 mm; Rear, Serial Range: -NBDC60079

1шт.

6

84468364

DECAL

Case; 983 x 250 mm, Start Serial: NBDC60080

3шт.

7

84196923

ANTI-SKID STRIP

425 mm (16 - 47/64 in)

2шт.

8

87408278

DECAL

Long Track (LT) Models, Serial Range: -NBDC60079

2шт.

9

87408275

DECAL

Wide Track (WT) Models, Serial Range: -NBDC60079

2шт.

10

87408279

DECAL

Low Ground Pressure (LGP) Models, Serial Range: -NBDC60079

2шт.

11

449842A1

REFLECTOR,160mm x 50.8mm H - Red

REFLECTOR

2шт.

12

186989A1

EMBLEM

Case; Front Grille

1шт.

13

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Case Emblem

2шт.

14

87733750

ANTI-SKID STRIP

400 mm (15 - 3/4 in)

1шт.

15

87415931

DECAL

Case, Engine

2шт.

16

84149587

DECAL

Door Trim Left Hand

1шт.

17

84149591

DECAL

Door Trim Right Hand

1шт.

18

87733753

PAD

Non Slip Left Hand

1шт.

19

87733752

PAD

Non Slip Right Hand

1шт.

20

87733751

ANTI-SKID STRIP

550 mm (21 - 21/32 in)

2шт.

21

84468362

DECAL,194mm x 170mm H

Eagle, Start Serial: NBDC60080

2шт.

22

84531855

DECAL

Model, 650L, Start Serial: NBDC60080

2шт.

23

84468416

DECAL

LT, Start Serial: NBDC60080

2шт.

24

84468428

DECAL

WT, Start Serial: NBDC60080

2шт.

25

84468429

DECAL

LGP, Start Serial: NBDC60080

2шт.
