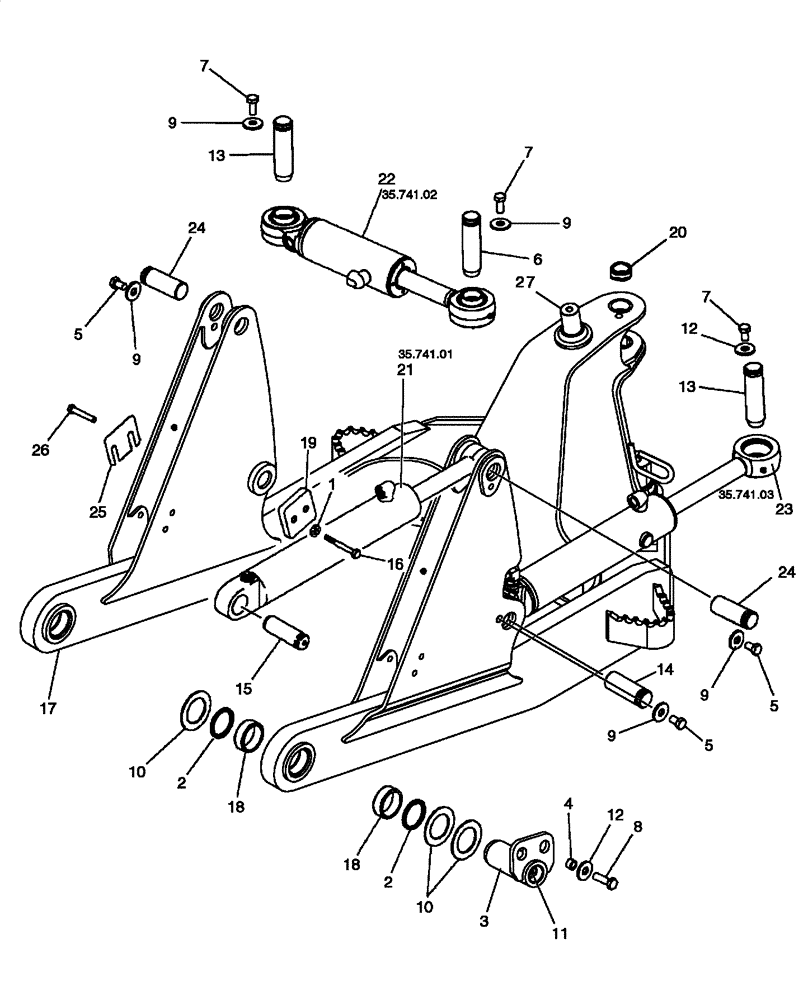

Запчасти Case 650L (86.110.04) - FRAME, LIFT - CYLINDERS, MOUNTING (86) - DOZER

1

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

2

L113522

SEAL

4шт.

3

87676279

PIN

2шт.

4

419041A1

SPACER

4шт.

5

86639032

BOLT,Hex, M16 x 25mm, Cl 10.9, Full Thd

4шт.

6

435157A1

GROOVED PIN,44.42mm OD x 165mm L

Rod End; Tilt Cylinder

1шт.

7

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

4шт.

8

86631181

BOLT,Hex, M16 x 50mm, Cl 10.9

BOLT

4шт.

9

419223A1

WASHER

8шт.

10

495-81283

WASHER,2 5/8" x 4" x .109"

Used As A Shim

6шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

12

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

5шт.

13

435157A1

GROOVED PIN,44.42mm OD x 165mm L

Tilt and Angle Cylinders

2шт.

14

345410A1

GROOVED PIN

Closed End; Angle Cylinder

2шт.

15

405607A1

GROOVED PIN,44.42mm OD x 165mm L

Lift Cylinder

2шт.

16

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

4шт.

17

48027431

FRAME

FRAME ASSY, Inc.18

1шт.

18

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

2-1/2 x 3 x 1

4шт.

19

414987A1

WEAR PLATE

2шт.

20

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

1-3/4 x 2-1/4 x 1

2шт.

21

417854A1

CYLINDER ASSY.

89 ID x 395 mm Stroke; Lift

2шт.

21

87361535R

REMAN-HYD CYLINDER

650L TIER 3 (HYDRO) (2/09-), Reman for New PN 417854A1

2шт.

21

87361535C

CORE-HYD CYLINDER

Return Number

2шт.

22

412683A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 137mm Stroke

89 ID x 137 mm Stroke; Tilt

1шт.

22

412683A1R

REMAN-HYD CYLINDER

650L TIER 3 (HYDRO) (2/09-)

1шт.

22

412683A1C

CORE-HYD CYLINDER

Return Number

1шт.

23

87750251

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 342mm Stroke

89 ID x 342 mm Stroke; Angle

2шт.

24

345410A1

GROOVED PIN

Lift Cylinder

2шт.

25

414988A1

SHIM

1шт.

26

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

2шт.

27

419235A1

PIN,44.42mm OD x 89.8mm L

1шт.
