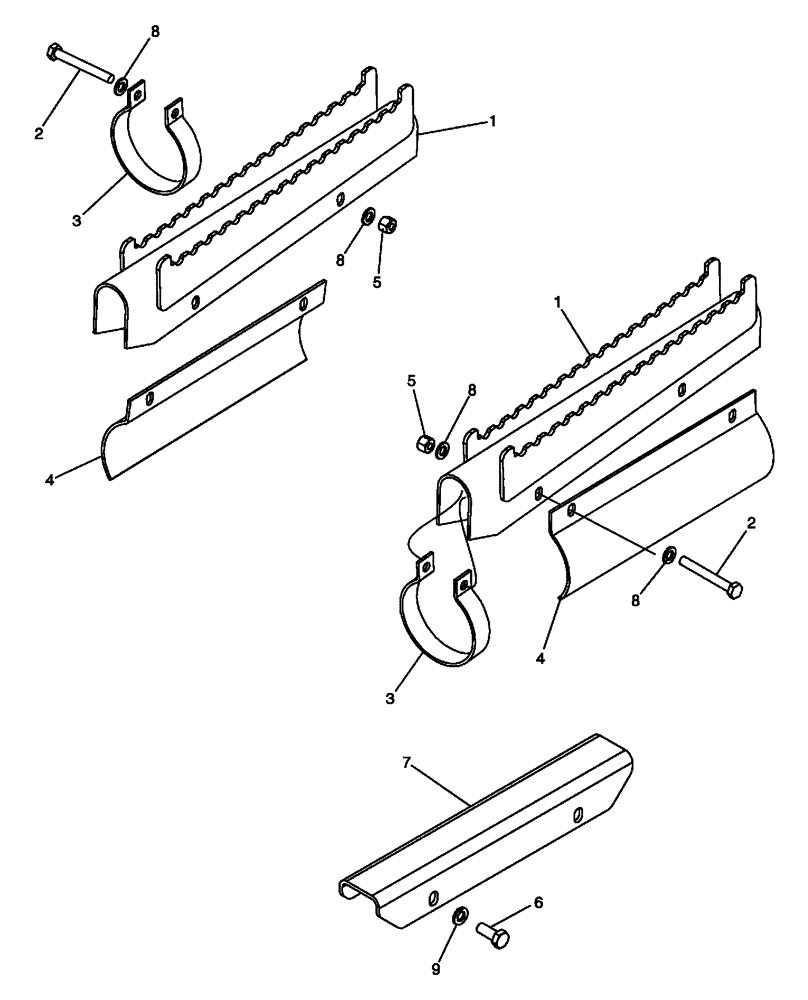

Запчасти Case 650L (86.110.02) - SHIELDS, DOZER HYDRAULICS (86) - DOZER

1

84216007

GUARD

GUARD ASSY., Hose Shield; Angle Cylinder

2шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

3

132115A1

CLAMP

4шт.

4

123603A2

GUARD ASSY.

Side Shield; Angle Cylinder

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

7

87665343

COVER

Tilt Hoses

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

9

892-11010

LOCK WASHER,M10

2шт.
