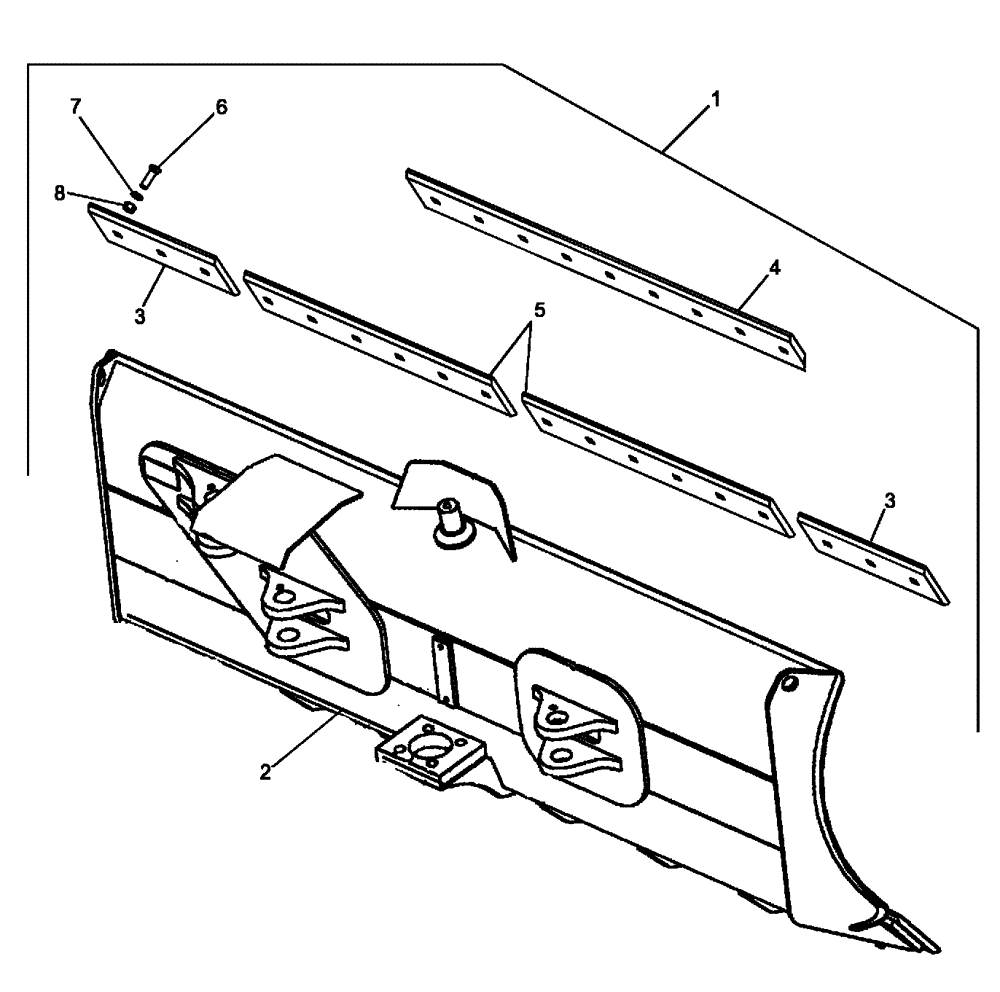

Запчасти Case 650L (86.110.01) - BLADE, DOZER - EDGES, CUTTING (86) - DOZER

1

87640013

BLADE

2286 mm (90 inch) Inc. 2 - 4, 6 - 8

1шт.

1

87640014

BLADE

2438 mm (96 inch); Inc. 2 - 4, 6 - 8

1шт.

1

87640015

BLADE

2845 mm (112 inch); Inc. 2,3,5 - 8

1шт.

1

87640016

BLADE

3048 mm (120 inch); Inc. 2,3,5 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Blade, 2286mm (90 Inch)

1шт.

2

NSS

NOT SOLD SEPARAT

Blade, 2438 mm (96 Inch)

1шт.

2

NSS

NOT SOLD SEPARAT

Blade, 2845 mm (112 Inch)

1шт.

2

NSS

NOT SOLD SEPARAT

Blade, 3048 mm (120 Inch)

1шт.

3

305440A1

EDGE

457 mm (18 in), End

2шт.

4

87641851

CUTTING EDGE

1364 mm (54 in); Center, 9 Bolt Holes

1шт.

4

87641852

CUTTING EDGE

1516 mm (59 - 3/4 in); Center, 10 Bolt Holes (Not Shown)

1шт.

5

87641853

CUTTING EDGE

964 mm (38 in); Center, 12 Bolt Holes

2шт.

5

87641854

CUTTING EDGE

1065 mm (42 in); Center, 14 Bolt Holes

2шт.

6

R56474

PLOW BOLT

3/4 x 2-1/2; 8

15-20шт.

7

92-11075

LOCK WASHER,3/4"

15-20шт.

8

29-1012

NUT,3/4"-10, G8

15-20шт.
