(55.518.03) - CAB - WASHER, WINDSHIELD

Запчасти Case 650L (55.518.03) - CAB - WASHER, WINDSHIELD (55) - ELECTRICAL SYSTEMS

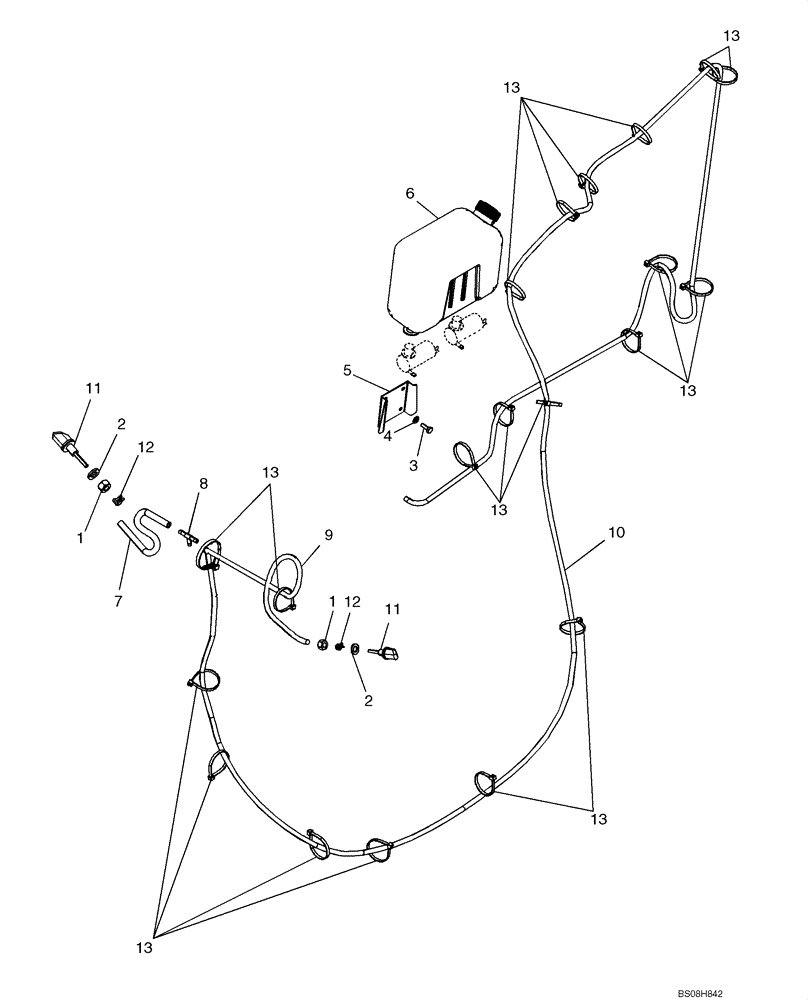

Схема запчастей Case 650L - (55.518.03) - CAB - WASHER, WINDSHIELD (55) - ELECTRICAL SYSTEMS
8
13
10
7
3
13
1
2
11
5
6
12
13
2
12
11
13
13
13
4
13
9
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

425-106

NUT,3/8"-16, Cl 5

2шт.

2

492-11038

LOCK WASHER,3/8"

2шт.

3

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

5155855

BRACKET

1шт.

6

87337962

RESERVOIR, WINDSHIEL

1шт.

7

87409799

HOSE

Washer, Right Hand Hood, 240 mm ( 9 - 1/2 in); Cut From 397154A1 Bulk

1шт.

8

87427778

FITTING,3/16"

1шт.

9

87628340

HOSE WASHER,4.76 mm ID x 660.00 mm

Windshield

1шт.

10

87652378

HOSE WASHER,4.76 mm ID x 4735.00 mm

Hood Feed

1шт.

11

284154A1

NOZZLE,3/8" - 16

2шт.

12

305578A1

CLAMP,7.65mm - 8.76mm

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

20шт.
