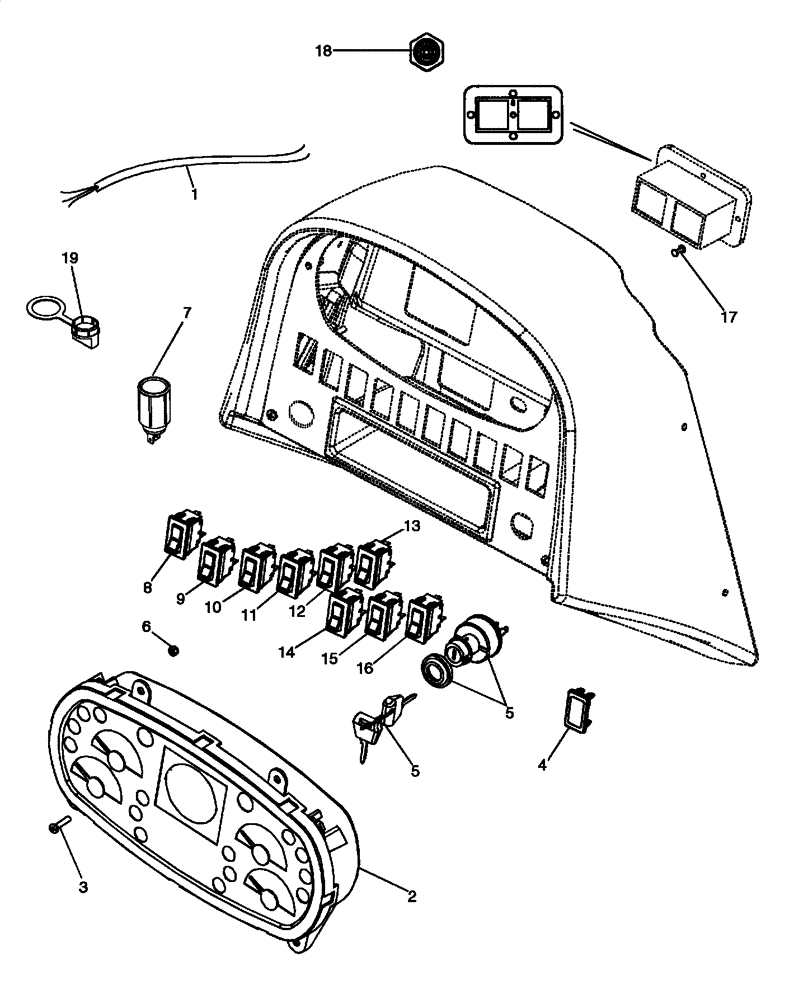

Запчасти Case 650L (55.418.02) - HARNESS, FRONT CONSOLE AND SWITCHES - CAB (55) - ELECTRICAL SYSTEMS

1

84156767

HARNESS

Dashboard Cab and Canopy Models

1шт.

2

87664590

CLUSTER, INSTR.

CLUSTER, INSTRUMENT

1шт.

2

87664590R

REMAN-INSTR CLUSTER

650L TIER 3 (HYDRO) (2/09-)

1шт.

2

87664590C

CORE-CLUSTER, INSTR

Return Number

1шт.

3

540-701

SCREW,Cross Pan Hd, M5 x 20

4шт.

4

126844A1

PLUG,1.427” x .62” , Plastic

1шт.

5

282775A1

IGNITION SWITCH

Includes Padded Keys 1964831C2

1шт.

6

832-10405

NUT,M5 x .8, Cl 8

4шт.

7

283779A1

POWER SOCKET,12V

1шт.

8

87536793

LIGHT SWITCH

Front

1шт.

9

87536792

LIGHT SWITCH

Rear

1шт.

10

87410552

WINDSHIELD WIPER SWI

Front and Rear

1шт.

11

386788A1

WINDSHIELD WIPER SWI

Rear Windshield Washer

1шт.

12

87410551

WINDSHIELD WIPER SWI

Left Hand And Right Hand Door Wipers

1шт.

13

87411310

WINDSHIELD WASHER SW

Left Hand And Right Hand Door Washers

1шт.

14

87410087

ROCKER SWITCH

Up/Down

1шт.

15

87410091

ROCKER SWITCH

Display

1шт.

16

386852A2

SWITCH

Horn

1шт.

17

86837478

RIVET,Pop, 1/8" x .650"

4шт.

18

87312549

HORN

1шт.

19

283781A1

CAP,Polyester Elastomer

Power Plug Outlet

1шт.
