(55.301.01) - ALTERNATOR

Запчасти Case 650L (55.301.01) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

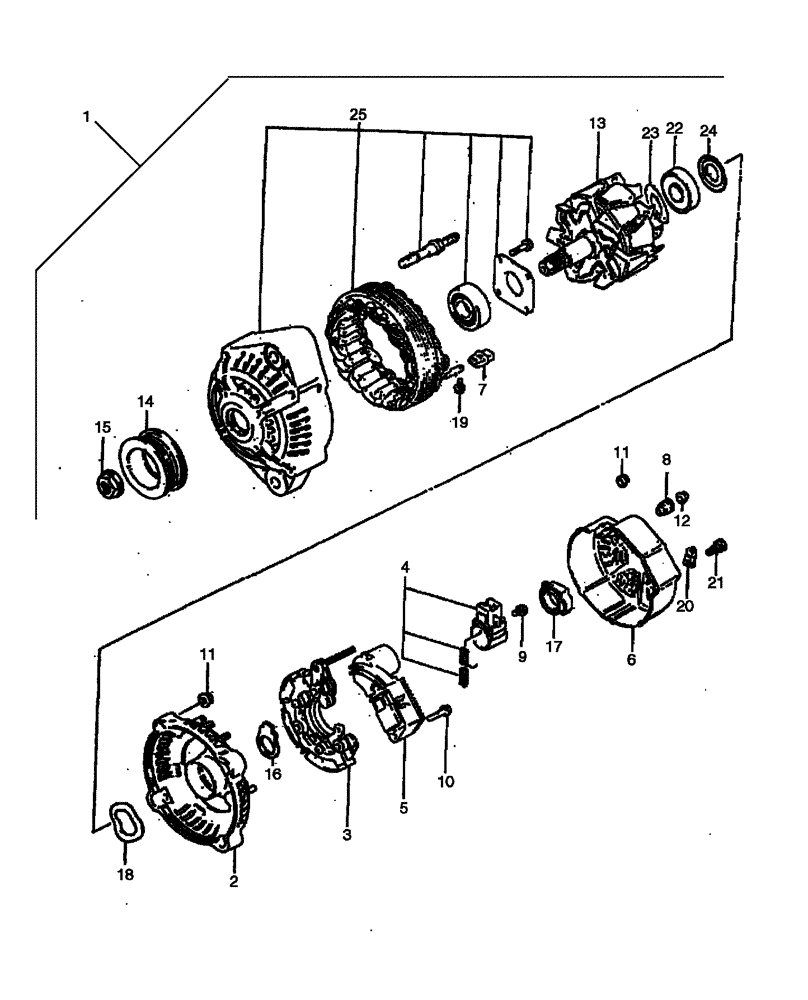

Схема запчастей Case 650L - (55.301.01) - ALTERNATOR (55) - ELECTRICAL SYSTEMS
5
16
22
13
20
10
15
12
4
19
9
2
11
1
24
6
7
21
18
14
11
23
17
25
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87422777

ALTERNATOR,12V, 90A, W/ Pulley

12V, 90 amp; Inc. 2 - 25; Connector on 87433543 Engine Harness Attaching to Alternator is (1) 382203A1 3-Pin Plug Connector, (3) 382204A1 Terminal, (3) 382207A1 Seal

1шт.

1

87422777R

REMAN-ALTERNATOR

12V, 90A

1шт.

1

87422777C

CORE-ALTERNATOR

Return Number

1шт.

2

87438963

HOUSING

1шт.

3

87438965

HOLDER

Rectifier

1шт.

4

87438967

HOLDER

Brush

1шт.

5

87438969

VOLTAGE REGULATOR

1шт.

6

87438970

REAR COVER

1шт.

7

87438971

BUSHING

Insulation

4шт.

8

87438972

BUSHING

Insulation

1шт.

9

87438973

SCREW

3шт.

10

87438974

CAPTIVE WASHER SCREW

2шт.

11

87438975

NUT

7шт.

12

87438976

NUT

1шт.

13

87438977

ARMATURE

1шт.

14

87438978

PULLEY,60mm OD

1шт.

15

87438979

NUT

1шт.

16

87438980

SEALING RING

SEALRING

1шт.

17

87438981

SEALING RING

SEALRING

1шт.

18

87438982

WASHER

Wave

1шт.

19

87438983

CAPTIVE WASHER SCREW

4шт.

20

87438984

PLATE

Terminal Plate

1шт.

21

87438985

SCREW

1шт.

22

87438986

BALL BEARING

1шт.

23

87438987

BEARING COVER

Bearing

1шт.

24

87438989

BEARING COVER

Bearing

1шт.

25

87438960

ALTERNATOR,12V, 90A, W/ Pulley

Drive End, Includes Stator

1шт.
