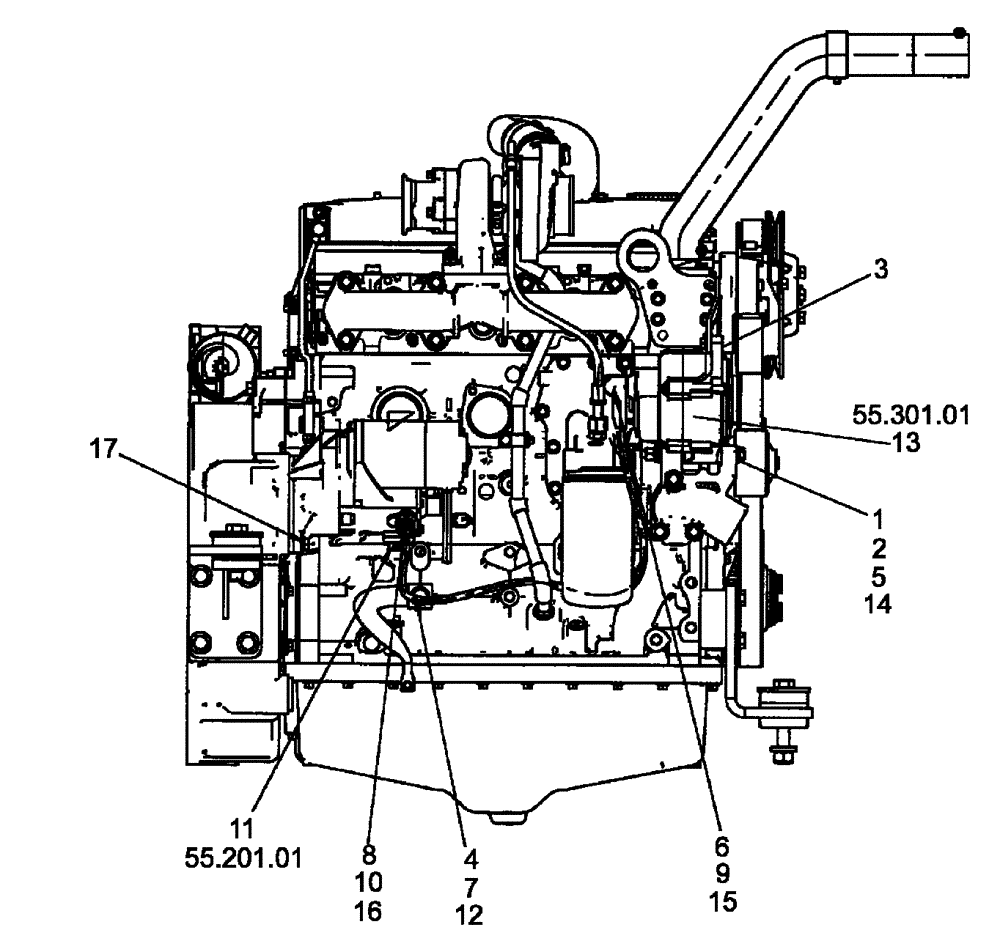

Запчасти Case 650L (55.201.04) - ENGINE (RIGHT-HAND SIDE) - ALTERNATOR/STARTER (55) - ELECTRICAL SYSTEMS

1

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

3

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

1шт.

4

893-11012

LOCK WASHER,Ext Tooth, M12

1шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

6

43362

NUT,M8 x 1.25, Cl 10

1шт.

7

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

1шт.

8

86500689

NUT,M10 x 1.5, Cl 10

1шт.

9

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.

10

86632602

LOCK WASHER,Ext Tooth, M10

1шт.

11

86992395

STARTER MOTOR,12V, 2.7kW

1шт.

86992395R

REMAN-STARTER,12V, 2.7kW

650L Tier 3 Hydro (2/09)

1шт.

86992395C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

86992395GV

STARTER MOTOR,12V, 2.7kW

1шт.

12

87016609

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

13

87422777

ALTERNATOR,12V, 90A, W/ Pulley

1шт.

13

87422777R

REMAN-ALTERNATOR

12V, 90A

1шт.

13

87422777C

CORE-ALTERNATOR

Return Number

1шт.

14

87452257

SPACER

1шт.

15

87678223

WIRE

1шт.

16

1964715C1

TERMINAL CONNECTOR

1шт.

17

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

2шт.
